HAL100-S Current Transducer

Current Transducer HAL 50 .. 600-S For the electronic measurement of currents: DC, AC, pulsed, with galvanic separation between the primary circuit and the secondary circuit. IPN = 50 .. 600 A Electrical data Type Primary nominal rms current HAL 50-S IPN (A) 50 HAL 100-S 100 HAL 200-S 200 HAL 300-S 300 HAL 400-S 400 HAL 500-S 500 HAL 600-S 600 ÎP Overload capability (Ampere Turns) Vout Output voltage (Analog) @ ±IPN RL Load resistance @ TA = 0 °C .. 70 °C @ TA .

HAL100-S Features

* Hall effect measuring principle

* Insulating plastic case recognized according to UL 94-V0. Advantages

* Easy installation

* Low power consumption

* Small size and space saving

* Only one design for wide current ratings range

* High im

HAL100-S Datasheet (585.33 KB)

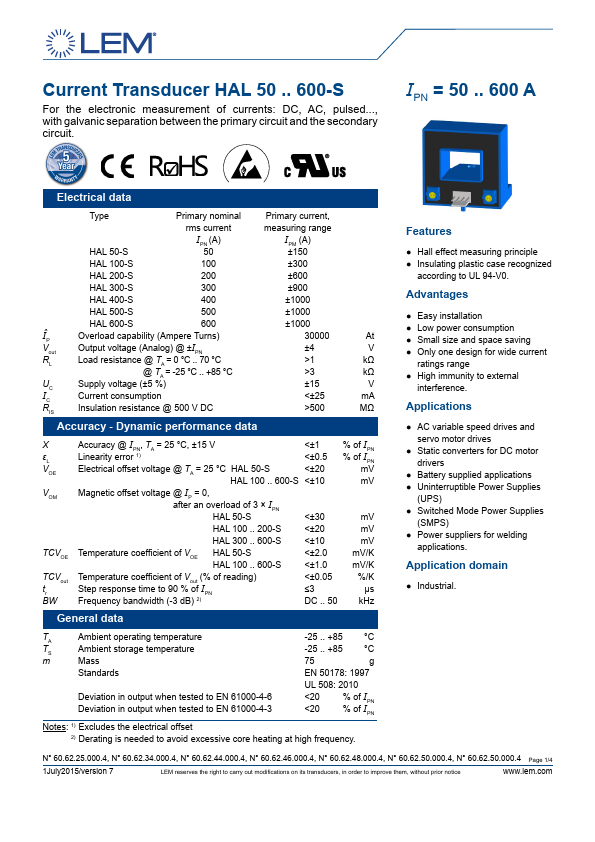

HAL100-S Datasheet Preview — Preview of HAL100-S PDF

Datasheet Details

Part number:

HAL100-S

Manufacturer:

LEM

File Size:

585.33 KB

Description:

Current transducer.
