HXN10-P Current Transducer

Current Transducer HXN 03 50-P series For the electronic measurement of currents: DC, AC, pulsed, with galvanic separation between the primary circuit and the secondary circuit. IP N = 3 50 A Electrical data Primary nominal current RMS IP N (A) Primary current measuring range IP M (A) 3 ±9 5 ±15 10 ±30 15 ±45 20 ±60 25 ±75 30 ±75 50 ±150 Primary conductor diameter × turns (mm) Type 0.6d × 20T 0.8d × 12T 1.1d × 6T 1.4d × 4T 1.6d × 3T 1.6d × 2T 1.6d × 2T 1.2d.

HXN10-P Features

* Hall effect measduCrl ing principle dCp

* Low power consumption

* Insulating plastic case recognized according to UL 94-V0. Advantages

* Low insertion loIPsses UC

* Easy mount with automatic Uout handling system RM

* Small size and space saving UC

* Only one d

HXN10-P Datasheet (696.50 KB)

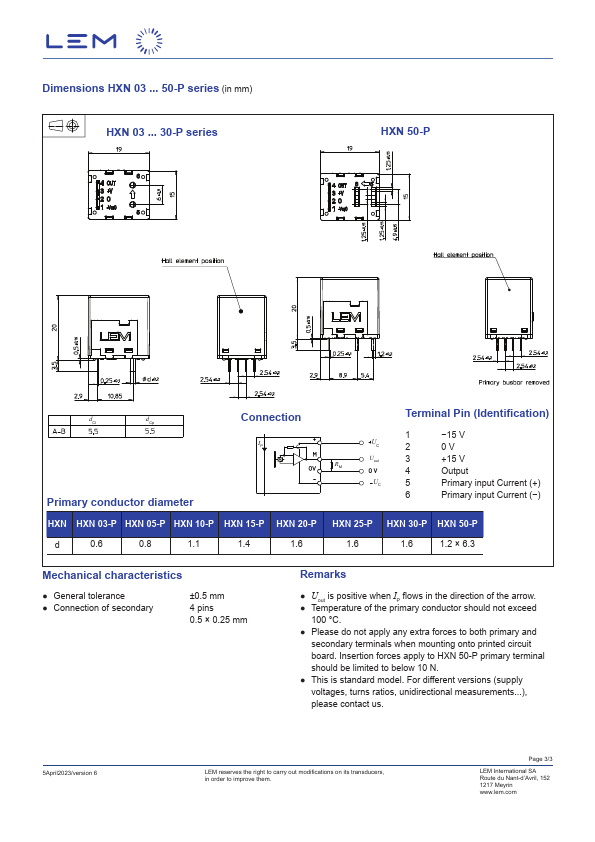

HXN10-P Datasheet Preview — Preview of HXN10-P PDF

Datasheet Details

Part number:

HXN10-P

Manufacturer:

LEM

File Size:

696.50 KB

Description:

Current transducer.
