LESR25-NP, LESR6-NP Datasheet - LEM

LESR25-NP Current Transducer

LESR25-NP Features

* Closed loop multi-range current transducer

* Voltage output

* Unipolar supply voltage

* Compact design for PCB mounting. Advantages

* Very low offset drift

* Very good du/dt immunity

* CASR footprint compatible

* Reference pin with two modes: Ref IN and Ref OUT

LESR6-NP-LEM.pdf

This datasheet PDF includes multiple part numbers: LESR25-NP, LESR6-NP. Please refer to the document for exact specifications by model.

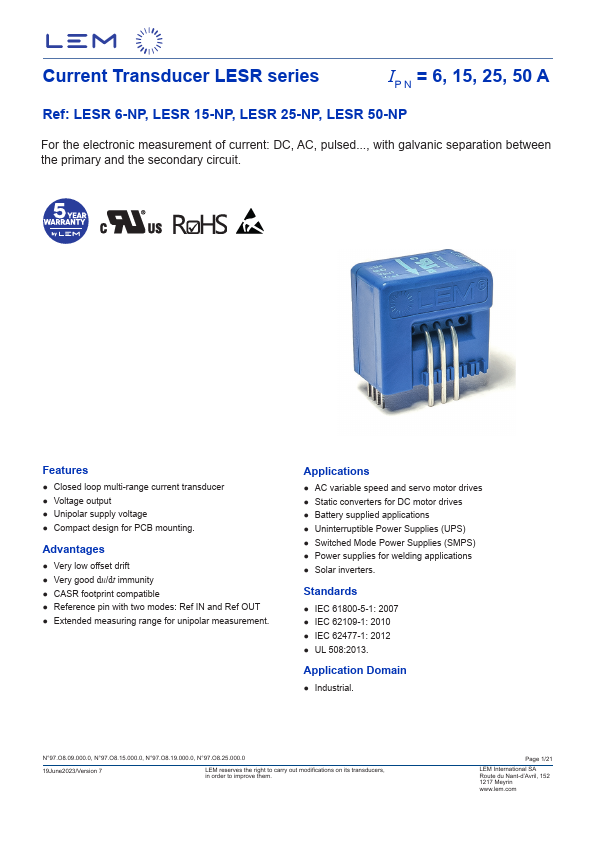

LESR25-NP Datasheet Preview Page 2 LESR25-NP Datasheet Preview Page 3

Datasheet Details

Part number:

LESR25-NP, LESR6-NP

Manufacturer:

LEM

File Size:

1.92 MB

Description:

Current transducer.

Note:

This datasheet PDF includes multiple part numbers: LESR25-NP, LESR6-NP.
Please refer to the document for exact specifications by model.
