LTC1000-S Datasheet - LEM

LTC1000-S_LEM.pdf

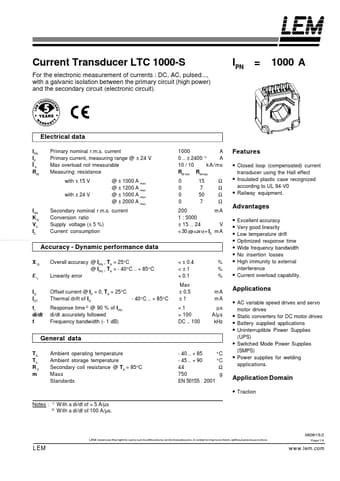

Preview of LTC1000-S PDF
LTC1000-S Datasheet Preview Page 2 LTC1000-S Datasheet Preview Page 3

Datasheet Details

Part number:

LTC1000-S

Manufacturer:

LEM

File Size:

263.28 KB

Description:

Current transducer.

LTC1000-S, Current Transducer

Current Transducer LTC 1000-S For the electronic measurement of currents : DC, AC, pulsed, with a galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit).

IPN = 1000 A Electrical data IPN IP ÎP RM Primary nominal r.m.s.

current Primary current, measuring range @ ± 24 V Max overload not measurable Measuring resistance with ± 15 V with ± 24 V ISN KN VC IC www.DataSheet4U.com 1000 A 0 ..

± 2400 1) A 10 / 10 kA/ms RM min RM max 0 0 0 0 15 7 50

LTC1000-S Features

* Closed loop (compensated) current transducer using the Hall effect @ ± 1000 A max @ ± 1200 A max @ ± 1000 A max @ ± 2000 A max

* Insulated plastic case recognized according to UL 94-V0

* Railway equipment. Secondary nominal r.m.s. current Conversion ratio Supply voltage
