LV25-800 Voltage Transducer

Voltage Transducer LV 25-800 For the electronic measurement of voltages: DC, AC, pulsed, with galvanic separation between the primary circuit and the secondary circuit. UP N = 800 V Electrical data UP N Primary nominal RMS voltage UP M Primary voltage, measuring range IP N Primary nominal RMS current RM Measuring resistance with ±12 V @ ±800 V max @ ±1200 V max with ±15 V @ ±800 V max @ ±1200 V max IS N Secondary nominal RMS current NP/NS UC IC Turns ratio S.

LV25-800 Features

* dCl dCp

* Closed loop (compensated) voltage transducer using the Hall effect

* Insulating plastic casISe reRcMognized according to UL 94-V0 UC

* Primary resistor and transducUeC r mounted on printed circuit board 128 × 60 mm. Advantages

* Excellent accuracy

* Very go

LV25-800 Datasheet (430.37 KB)

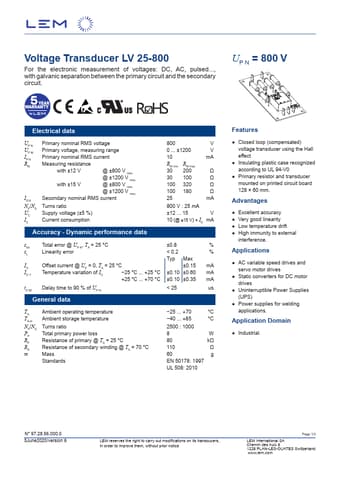

LV25-800 Datasheet Preview — Preview of LV25-800 PDF
