NNC-20GFP, NNC-10GFP - Current Transducer

NNC-20GFP Description

Current Transducer NNC-10..40GFP For the electronic measurement of currents: DC, AC, pulsed, mixed, with a galvanic isolation between the primary circ.

NNC-20GFP Features

* Hall effect measuring principle
* Galvanic isolation between primary
* Isolation voltage 2500V
* Low power consumption
* Extended measuring range (3 x IPN) and secondary circuit NNC-10GFP NNC-20GFP NNC-30GFP NNC-40GFP VC IC Vd RIS VOUT ROUT RL www. DataShee

NNC-20GFP Applications

* AC variable speed drives
* Battery supplied applications
* Uninterruptible Power Supplies
* DC motor drives
* Switched Mode Power
* Power supplies for welding applications Supplies(SMPS) (UPS) General data TA TS m Ambient operating temperature Ambie

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NNC-20GFP, NNC-10GFP. Please refer to the document for exact specifications by model.

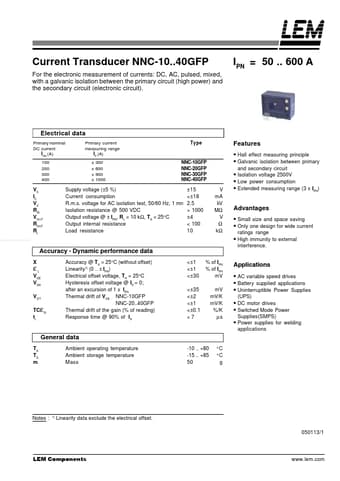

datasheet Preview Page 2

Datasheet Details

Part number
NNC-20GFP, NNC-10GFP
Manufacturer
LEM
File Size
94.05 KB
Datasheet
NNC-10GFP_LEM.pdf
Description
Current Transducer
Note
This datasheet PDF includes multiple part numbers: NNC-20GFP, NNC-10GFP.
Please refer to the document for exact specifications by model.
