LD70-24VDC - AUTOMOTIVE RELAY

Product Overview

LEONE

Part number	LD70-24VDC
Manufacturer	LEONE
File Size	87.54 KB
Description	AUTOMOTIVE RELAY
Datasheet	LD70-24VDC Datasheet
Note	This datasheet PDF includes multiple part numbers: LD70-24VDC, LD70-12VDC. Please refer to the document for exact specifications by model.

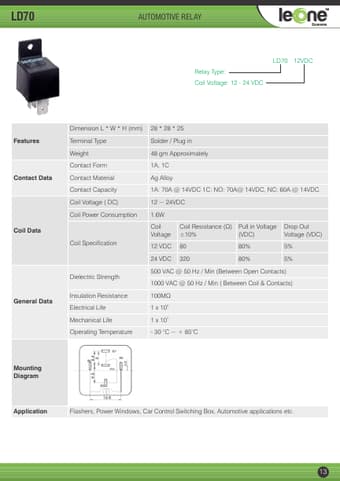

Additional preview pages of the LD70-24VDC datasheet.

Terminal Type Weight Contact Form Contact Data Contact Material Contact Capacity Coil Voltage ( DC) Coil Power Consumption Coil Data Coil Specification 28.
28.
25 Solder / Plug in 48 gm Approximately 1A, 1C Ag Alloy 1A: 70A @ 14VDC 1C: NO: 70A@ 14VDC, NC: 60A @ 14VDC. 12 ~ 24VDC 1.6W Coil Voltage 12 VDC 24 VDC Coil Resistance (Ω) Pull in Voltage ±10% (VDC) 80 320 80% 80% Drop Out Voltage (VDC) 5% 5% Dielectric Strength Insulation Resistance Electrical Life Mechanical Life Operating T.
