LD7111

HIGH POWER KLYSTRON

LD7111 Features

* ™ Compact and Light Weight (27 kg approx.) ™ High Efficiency (The DC to RF conversion efficiency is typically 23 % or higher.) ™ High Power Gain ™ Long Life and High Stability ™ Simple Cooling System (forced-air-cooled) ™ Automatic Channel Tuner (8-12 Channels) Hand Tuner model is also available. ™

LD7111 General Description

The series of NEC LD7111 is a five-cavity Klystron Amplifier and ideal for use in the earth-to-satellite communication systems. These are designed for operating at 1.7 kW CW over the frequency range of 17.3 to 18.4 GHz. The instantaneous bandwidth of minus one-decibel is at least 90 MHz over the ent.

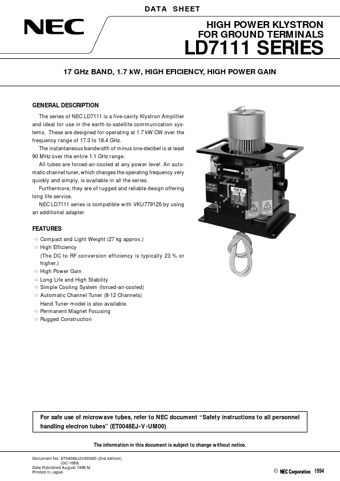

LD7111 Datasheet (57.98 KB)

Preview of LD7111 PDF

Datasheet Details

Part number:

LD7111

Manufacturer:

NEC

File Size:

57.98 KB

Description:

High power klystron.
