LD7215C Datasheet, Tube, NEC

LD7215C Features

  • Tube ™ High Power Gain The power gain is typically 52 dB at small signal level and 46 dB at 3 kW Ievel. ™ Simple Cooling System All the tubes are forced-air-cooled, so that the cooling syste

PDF File Details

Part number:

LD7215C

Manufacturer:

NEC

File Size:

92.50kb

Download:

📄 Datasheet

Description:

High power traveling wave tube. The NEC LD7215, LD7215C and LD7215D are PPM-focused traveling wave tubes designed for use as the final amplifiers in the earth-to-sat

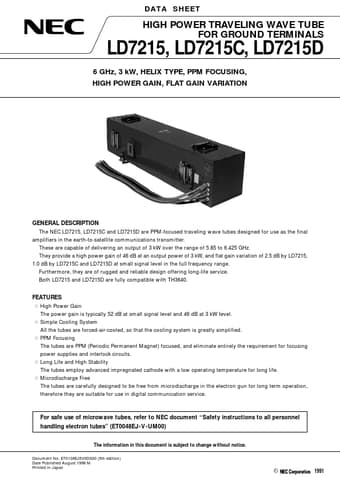

Datasheet Preview: LD7215C 📥 Download PDF (92.50kb)
