LD7265A, Smart Photoflash Capacitor Charger

LD7265A 6/25/2008 Smart Photoflash Capacitor Charger with Integrated MOS REV:01 General .
The LD7265A is an ideal charge control IC for flash units with internal soft start, adjustable charging current and output voltage.

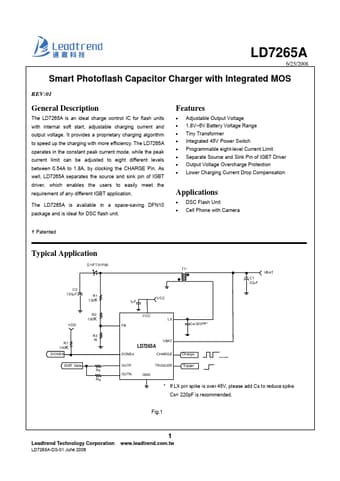

datasheet Preview Page 1 from Datasheet4u.com

LD7265A-Leadtrend.pdf

LD7265A Datasheet Preview — Preview of LD7265A PDF

Datasheet Details

Part number:

LD7265A

Manufacturer:

Leadtrend

File Size:

331.80 KB

Description:

Smart Photoflash Capacitor Charger

Features

* Adjustable Output Voltage
* 1.8V~6V Battery Voltage Range
* Tiny Transformer
* Integrated 45V Power Switch
* Programmable eight-level Current Limit
* Separate Source and Sink Pin of IGBT Driver
* Output Voltage Overcharge Protection

Applications

* DSC Flash Unit
* Cell Phone with Camera g Patented Typical Application D 1/FT 01P80 C2 1 2 0μ F R1 130K VDD R1 1 0 0K DO NE # R2 1 30 K R3 1K IG BT Gate RP RN T1
* VB AT C1 2 2μ F VCC 1μF VCC FB LX Cs/ 22 0 PF
* V BAT LD7265A DONE # CHARG E Charge OUTP OUTN
