LD7260

HIGH POWER TRAVELING WAVE TUBE

LD7260 Features

* ™ Lightweight, Compact and Efficient The tube has dual-depressed collectors and designed to operate at high efficiency across the power output range. It features state-of-the-art techniques to optimize size and efficiency. ™ Low Distortion Distortion is a very important factor in multiplex digital s

LD7260 General Description

The NEC LD7260 is a PPM-focused traveling wave tube designed for use as final amplifiers in the earth-tosatellite communications transmitter. This is capable of delivering an output power of 2.25 kW over the range of 5.85 to 6.425 GHZ and provides a power gain of 44 dB at rated output power. This is.

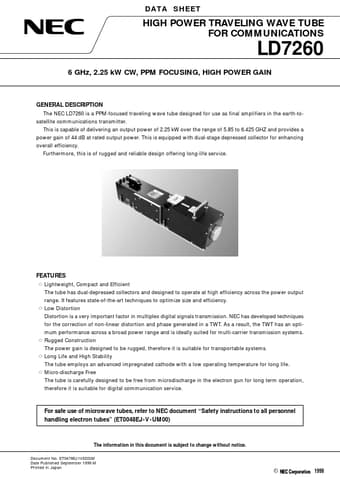

LD7260 Datasheet (62.65 KB)

Preview of LD7260 PDF

Datasheet Details

Part number:

LD7260

Manufacturer:

NEC

File Size:

62.65 KB

Description:

High power traveling wave tube.
