LD7262

HIGH POWER TRAVELING WAVE TUBE

LD7262 Features

* ™ Lightweight, Compact and Efficient The tube has dual-depressed collectors and designed to operate at high efficiency across the power output range. It features state-of-the-art techniques to optimize size and efficiency. ™ Low Distortion Distortion is a very important factor in multiplex digital s

LD7262 General Description

The NEC LD7262 series of PPM focused traveling wave tubes are designed for final amplifier in the earth-tosatellite communication's transmitter. These are capable of delivering an output power of 750 W over the range of 5.85 to 6.45 GHZ and an output power of 700 W over the range of 5.85 to 7.1 GHZ .

LD7262 Datasheet (57.42 KB)

Preview of LD7262 PDF

Datasheet Details

Part number:

LD7262

Manufacturer:

NEC

File Size:

57.42 KB

Description:

High power traveling wave tube.

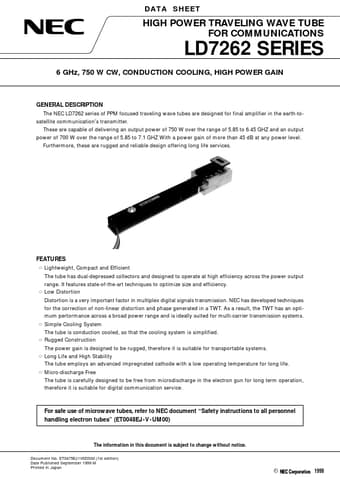

DATA S H E E T HIGH POWER TRAVELING WAVE TUBE FOR COMMUNICATIONS LD7262 SERIES 6 GHz, 750 W CW, CONDUCTION COOLING, HIGH POWER GAIN GENERAL DESCRIPT.
