LZH3-DC24V-S-H Datasheet - LEONE

TELECOM RELAY

LZH3-DC24V-S-H Features

* Terminal Type Weight Contact Form, Resistance Contact Data Contact Material Contact Capacity Coil Voltage ( DC) Coil Power Consumption Coil Data Coil Specification 15.5

* 10.5

* 11.8 PCB 3.5 gm Approximately 1C, 100mΩ Max. @ 1A, 6VDC Ag Alloy 3A @250VAC / 3A @30VDC 3 ~ 24 VDC 0.2W Coil Volt

LZH3-DC24V-S-H Datasheet (91.81 KB)

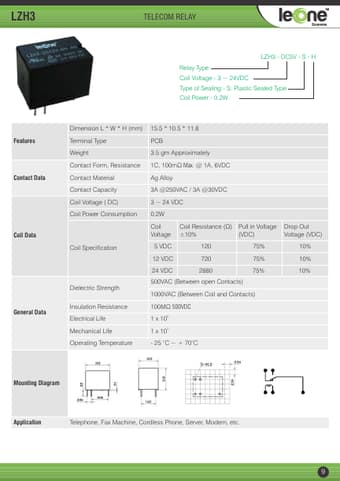

Preview of LZH3-DC24V-S-H PDF

Datasheet Details

Part number:

LZH3-DC24V-S-H

Manufacturer:

LEONE

File Size:

91.81 KB

Description:

Telecom relay.
LZH3 TELECOM RELAY LZH3 - DC5V - S - H Relay Type: Coil Voltage:- 3 ~ 24VDC Type of Sealing:- S: Plastic Sealed Type Coil Power:- 0.2W Dimension L .
