LZH3-DC5V-S-H - TELECOM RELAY

Name: LZH3-DC5V-S-H
SKU: LZH3-DC5V-S-H-850132

LEONE

The LZH3-DC5V-S-H by LEONE is a TELECOM RELAY. Below is the official datasheet preview.

Datasheet Details

Part number	LZH3-DC5V-S-H
Manufacturer	LEONE
File Size	91.81 KB
Description	TELECOM RELAY
Datasheet	LZH3-DC5V-S-H-LEONE.pdf

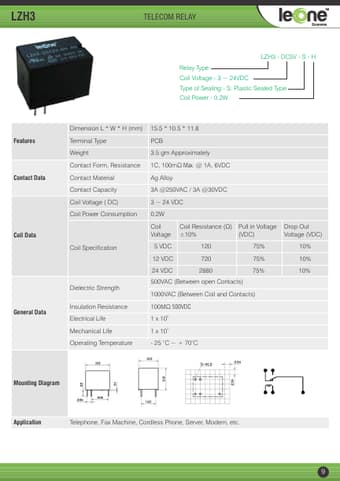

Additional preview pages of the LZH3-DC5V-S-H datasheet.

Terminal Type Weight Contact Form, Resistance Contact Data Contact Material Contact Capacity Coil Voltage ( DC) Coil Power Consumption Coil Data Coil Specification 15.5.
10.5.
11.8 PCB 3.5 gm Approximately 1C, 100mΩ Max. @ 1A, 6VDC Ag Alloy 3A @250VAC / 3A @30VDC 3 ~ 24 VDC 0.2W Coil Voltage 5 VDC 12 VDC 24 VDC Coil Resistance (Ω) Pull in Voltage ±10% (VDC) 120 720 2880 75% 75% 75% Drop Out Voltage (VDC) 10% 10% 10% Dielectric Strength Insulation Resistance Electrical Life Mechanical.
