SC5-S-DC12V

PCB Power Relay

SC5-S-DC12V Datasheet (127.94 KB)

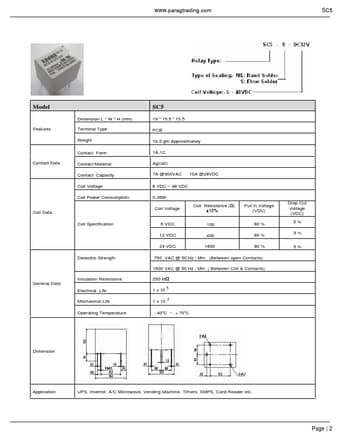

Preview of SC5-S-DC12V PDF Datasheet

Datasheet Details

Part number:

SC5-S-DC12V

Manufacturer:

LEONE

File Size:

127.94 KB

Description:

Pcb power relay

SC5-S-DC12V Features

* Terminal Type PCB Weight 10.5 gm Approximately Contact Form 1A,1C Contact Data Contact Material AgCdO Contact Capacity 7A @300VAC 10A @28VDC Coil Voltage 6 VDC ~ 48 VDC Coil Power Consumption 0.36W Coil Data Coil Specification Coil Voltage Coil Resistance (Ù) ±10% Pull in Voltage
