Part number:
SC5-S-DC24V
Manufacturer:
LEONE
File Size:
127.94 KB
Description:
Pcb power relay.

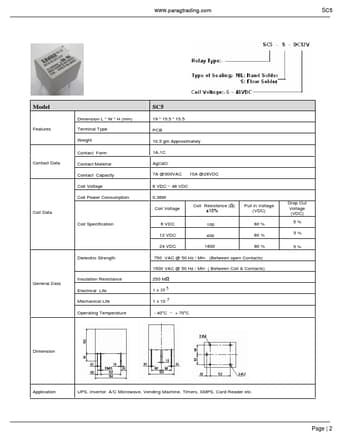

SC5-S-DC24V Datasheet (127.94 KB)
* Terminal Type PCB Weight 10.5 gm Approximately Contact Form 1A,1C Contact Data Contact Material AgCdO Contact Capacity 7A @300VAC 10A @28VDC Coil Voltage 6 VDC ~ 48 VDC Coil Power Consumption 0.36W Coil Data Coil Specification Coil Voltage Coil Resistance (Ù) ±10% Pull in Voltage
SC5-S-DC24V Datasheet (127.94 KB)
SC5-S-DC24V
LEONE
127.94 KB
Pcb power relay.
