LMP3131SF - 30V P-Channel MOSFET

📥 Download Datasheet

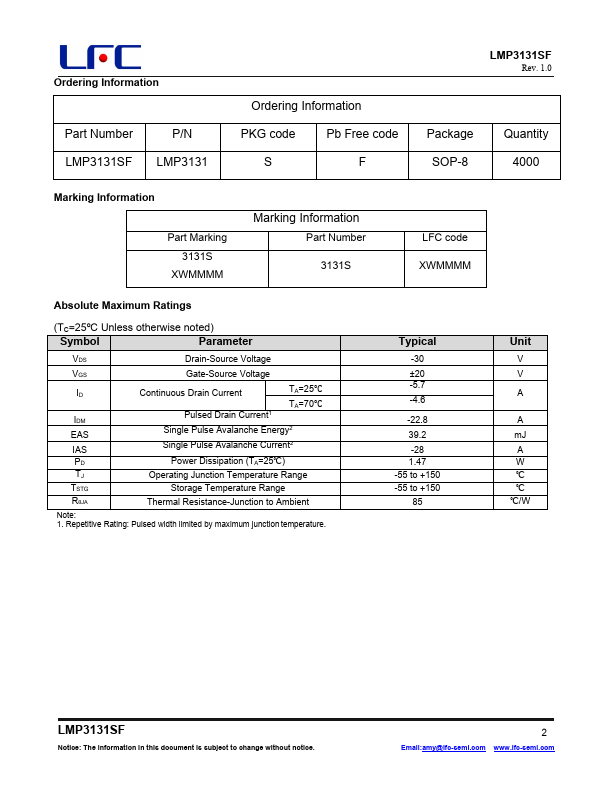

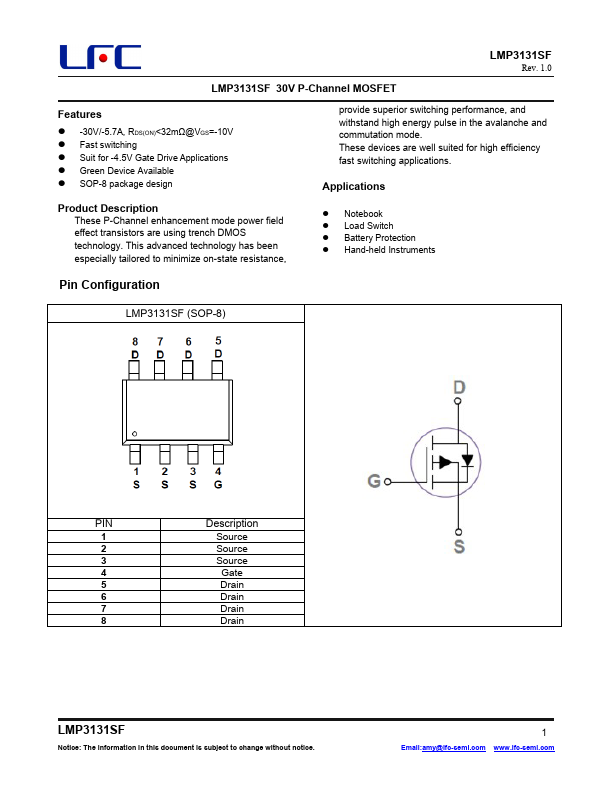

Preview of LMP3131SF PDF

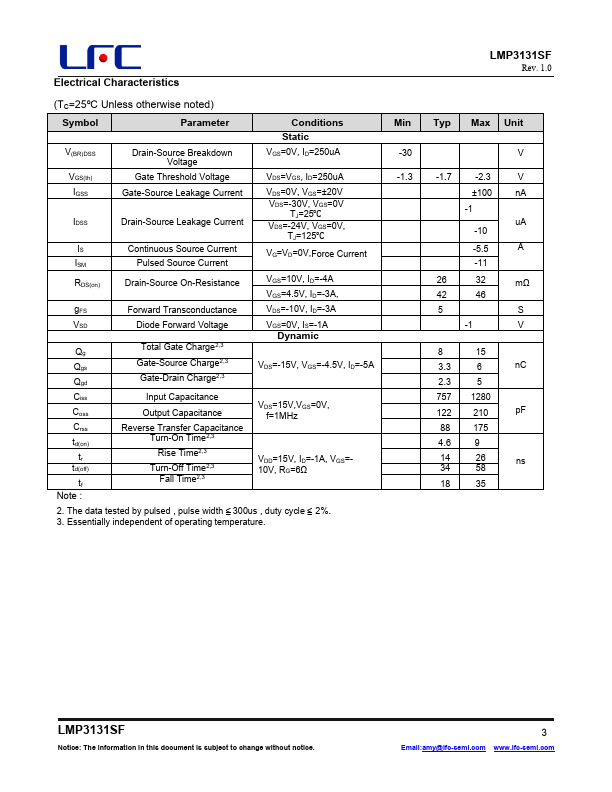

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number LMP3131SF
Manufacturer LFC semi
File Size 822.10 KB
Description 30V P-Channel MOSFET
Datasheet download datasheet LMP3131SF-LFCsemi.pdf

LMP3131SF Product details

Description

These P-Channel enhancement mode power field effect transistors are using trench DMOS technology. Notebook Load Switch Battery Protection Hand-held Instruments Pin Configuration LMP3131SF (SOP-8) PIN Description 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain LMP3131SF Notice: The information in this document is subject to change without notice.

Features
