LPD6010 - 1.5A High Efficiency PWM Step-Down DC/DC Converter

LPD6010 Datasheet Preview — Preview of LPD6010 PDF

Datasheet Details

Part number	LPD6010
Manufacturer	LFC semi
File Size	460.42 KB
Description	1.5A High Efficiency PWM Step-Down DC/DC Converter
Datasheet	LPD6010-LFCsemi.pdf

LPD6010 Product details

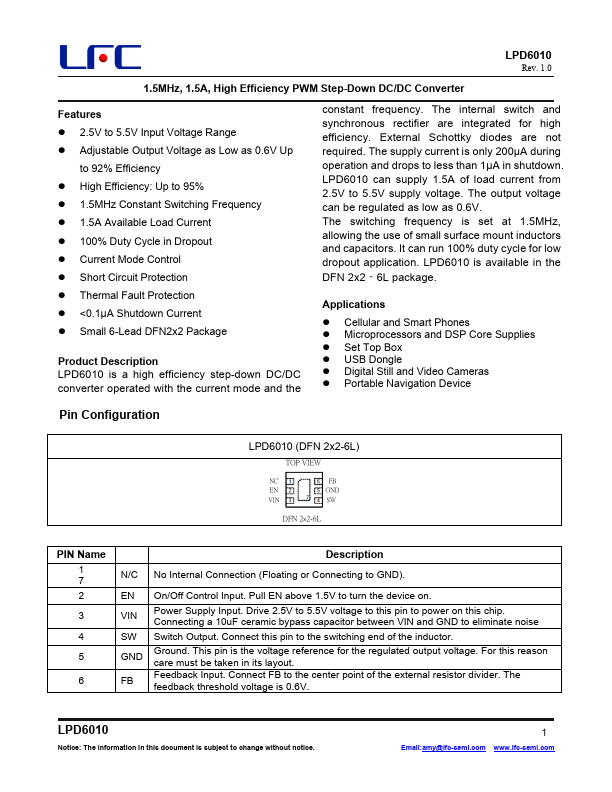

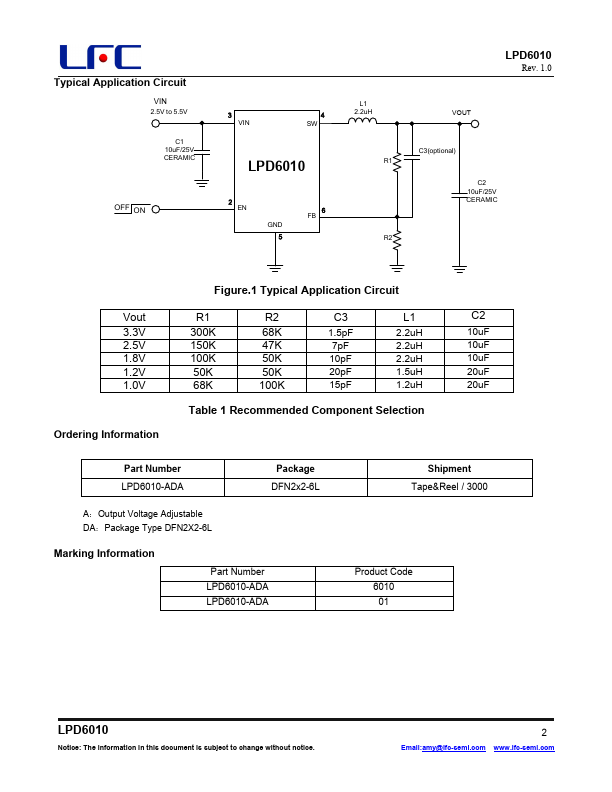

Description

LPD6010 is a high efficiency step-down DC/DC converter operated with the current mode and the constant frequency.The internal switch and synchronous rectifier are integrated for high efficiency.External Schottky diodes are not required.The supply current is only 200μA during operation and drops to less than 1μA in shutdown.LPD6010 can supply 1.5A of load current from 2.5V to 5.5V supply voltage.The output voltage can be regulated as low as 0.6V.The switching frequency is set at 1.5MHz, al

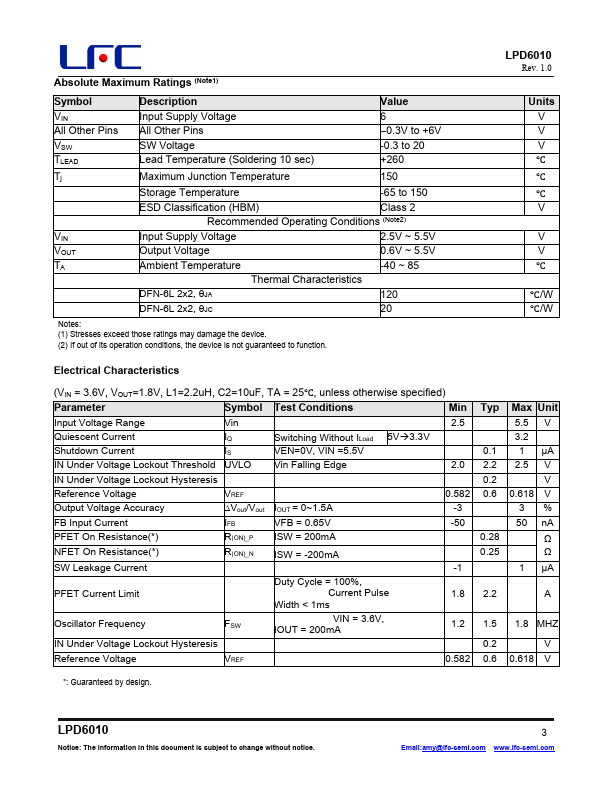

Features

2.5V to 5.5V Input Voltage Range.
Adjustable Output Voltage as Low as 0.6V Up to 92% Efficiency.
High Efficiency: Up to 95%.
1.5MHz Constant Switching Frequency.
1.5A Available Load Current.
100% Duty Cycle in Dropout.
Current Mode Control.
Short Circuit Protection.
Thermal Fault Protection.
