LPD6423 - 18V 3A 700KHz Synchronous Step-Down DC/DC Converter

📥 Download Datasheet

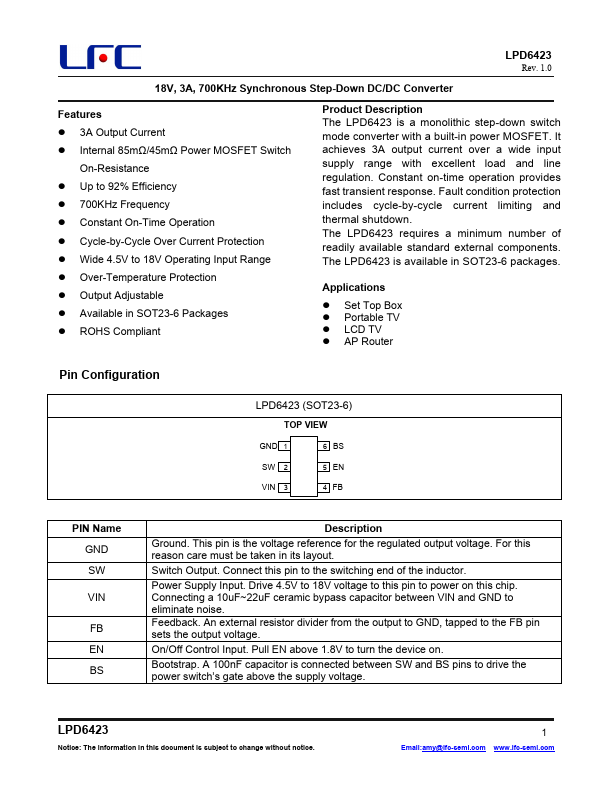

LPD6423 Datasheet Preview — Preview of LPD6423 PDF

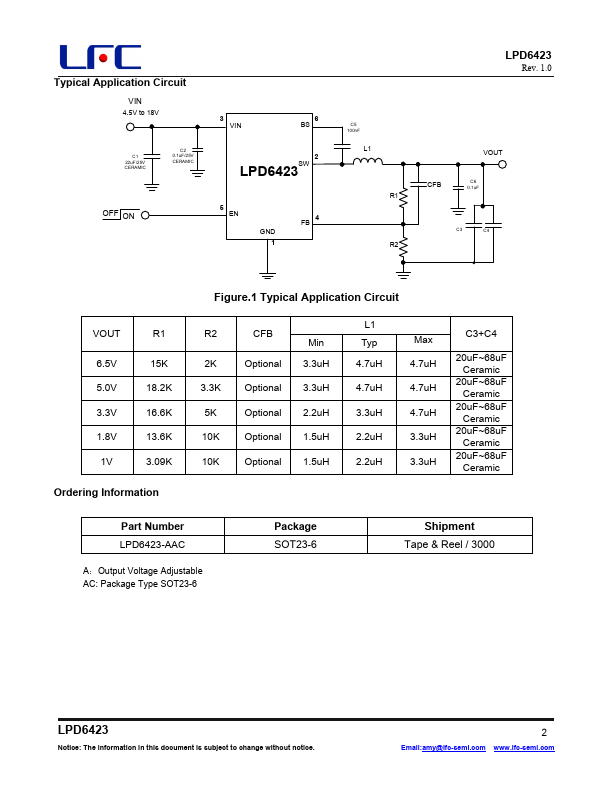

datasheet Preview Page 2

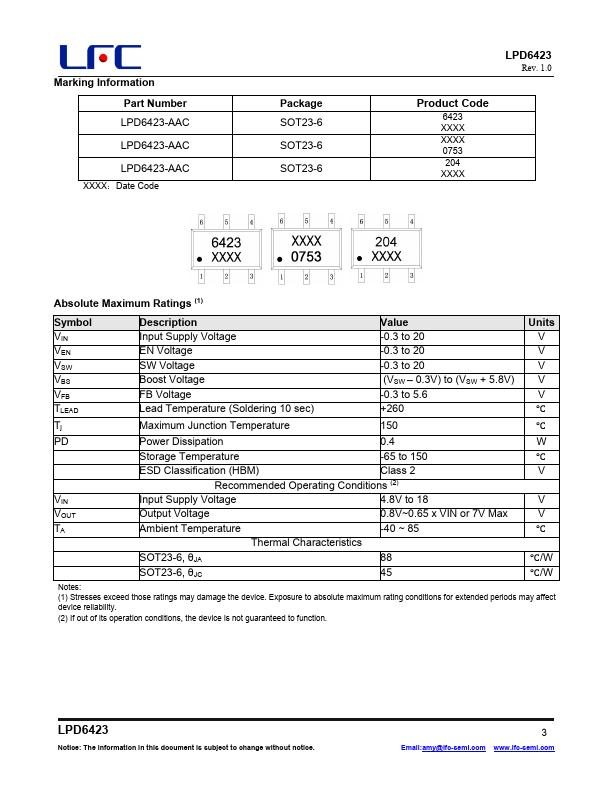

datasheet Preview Page 3

Datasheet Details

Part number	LPD6423
Manufacturer	LFC semi
File Size	829.61 KB
Description	18V 3A 700KHz Synchronous Step-Down DC/DC Converter
Datasheet	LPD6423-LFCsemi.pdf

LPD6423 Product details

Description

The LPD6423 is a monolithic step-down switch mode converter with a built-in power MOSFET. Set

Features

3A Output Current.
Internal 85mΩ/45mΩ Power MOSFET Switch On-Resistance.
Up to 92% Efficiency.
700KHz Frequency.
Constant On-Time Operation.
Cycle-by-Cycle Over Current Protection.
Wide 4.5V to 18V Operating Input Range.
Over-Temperature Protection.
Output Adjustable.
Available in SOT23-6 Packages.
ROHS Compliant Product.
