LX606 - 1x Low EMI Reduction

Name: LX606
SKU: LX606-1581677

📥 Download Datasheet

LX606 Datasheet Preview — Preview of LX606 PDF

Datasheet Details

Part number	LX606
Manufacturer	LFC semi
File Size	441.61 KB
Description	1x Low EMI Reduction
Datasheet	LX606-LFCsemi.pdf

LX606 Product details

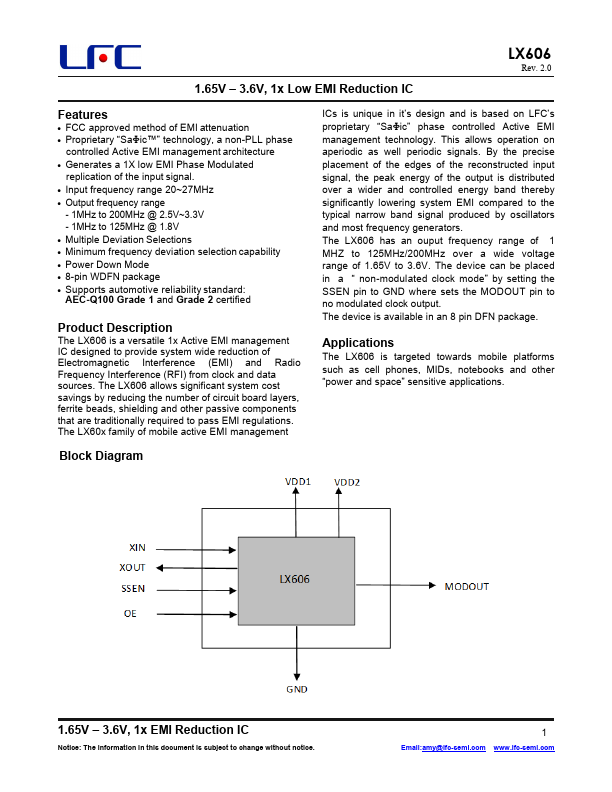

Description

The LX606 is a versatile 1x Active EMI management IC designed to provide system wide reduction of Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) from clock and data sources.

Features

FCC approved method of EMI attenuation.
Proprietary “SaΦic™” technology, a non-PLL phase controlled Active EMI management architecture.
Generates a 1X low EMI Phase Modulated replication of the input signal.
Input frequency range 20~27MHz.
Output frequency range - 1MHz to 200MHz @ 2.5V~3.3V - 1MHz to 125MHz @ 1.8V.
Multiple Deviation Selections.
Minimum frequency deviation selection capability.
Power Down Mode.
8-.
