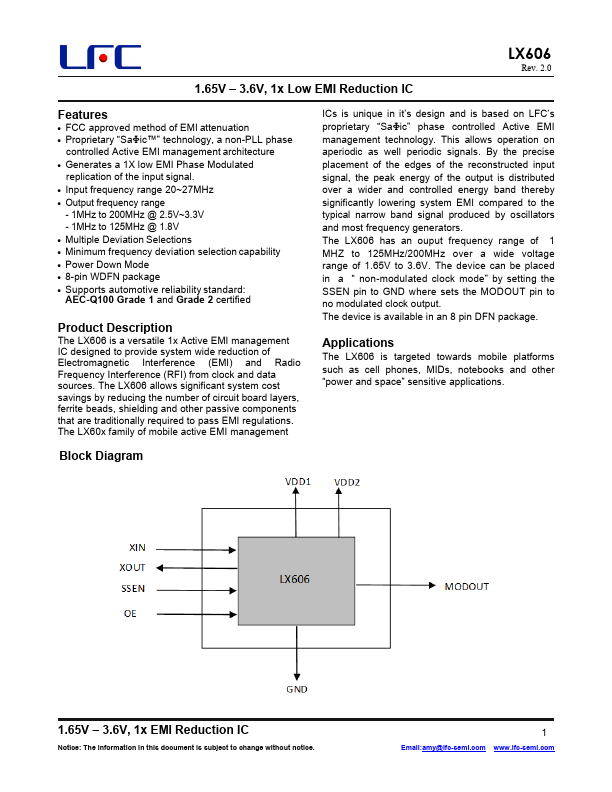

datasheet Preview Page 1 from Datasheet4u.com

LX606E, LX606 1x Low EMI Reduction

1.65V * 3.6V, 1x Low EMI Reduction IC LX606 Rev.2.0 .
The LX606 is a versatile 1x Active EMI management IC designed to provide system wide reduction of Electromagnetic Interference (EMI) and Radio Frequen.

LX606-LFCsemi.pdf

LX606E Datasheet Preview — This datasheet PDF includes multiple part numbers: LX606E, LX606. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LX606E, LX606

Manufacturer:

LFC semi

File Size:

441.61 KB

Description:

1x Low EMI Reduction

Note:

This datasheet PDF includes multiple part numbers: LX606E, LX606.
Please refer to the document for exact specifications by model.

Features

* FCC approved method of EMI attenuation
* Proprietary “SaΦic™” technology, a non-PLL phase controlled Active EMI management architecture
* Generates a 1X low EMI Phase Modulated replication of the input signal.
* Input frequency range 20~27MHz
* Output freque

Applications

* The LX606 is targeted towards mobile platforms such as cell phones, MIDs, notebooks and other “power and space” sensitive applications. Block Diagram 1.65V
* 3.6V, 1x EMI Reduction IC Notice: The information in this document is subject to change without notice. 1 Email:amy@lfc-semi. com ww
