LB035Q02-TD01 Datasheet - LG

LB035Q02-TD01 TFT LCD Module

Interface [Input Terminal] Absolute Maximum Ratings Electrical Characteristics Touch Screen Panel Specifications Optical Characteristics Mechanical Characteristics Operation Specifications Power On/Off Sequence Reliability Test www.DataSheet.net/ Page 3 4 6 10 11 12 16 20 21 27 30 31 33 34 Outline.

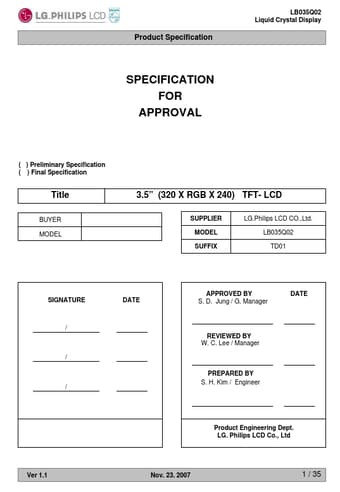

LB035Q02 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ) Preliminary Specification (¡Ü ) Final Specification Title BUYER MODEL 3.5” (320 X RGB X 240) TFT- LCD SUPPLIER MODEL SUFFIX www.DataSheet.net/ LG.Philips LCD CO.,Ltd. LB035Q02 TD01 SIGNATURE DATE APPROVED BY S. D. Jung / G. Manager DATE / REVIEWED BY W. C. Lee / Manager / PREPARED BY S. H. Kim / Engineer / Product Engineering Dept. LG. Philips LCD Co., Ltd Ver 1.1 Nov. 23. 2007 1 / 35 Datasheet p.

LB035Q02-TD01 Features

* PARAMETER SPECIFICATION 3.5 inches 76.9[H] x 63.9[V] x 4.25t[D](with Touch Panel) 70.08[H] x 52.56[V] 320[H] x RGB x 240[V] 0.073 x 0.219 Stripe type Transmissive Pseudo-16M 6 o’clock RGB Vertical Stripe Digital RGB + SPI Interface 41g 6 LEDs www.DataSheet.net/ REMARK Diagonal [mm] [mm] [mm] color
