LB035Q02-TD02 Datasheet - LG

LB035Q02-TD02 TFT LCD Module

Interface [ Input Terminal] Absolute Maximum Ratings Electrical Characteristics Optical Characteristics Mechanical Characteristics Operation Specifications Power On/Off Sequence Reliability Test Outline Dimension www.DataSheet.net/ Page 3 4 6 10 11 12 15 16 22 25 26 28 30 31 32 Packing Marking & O.

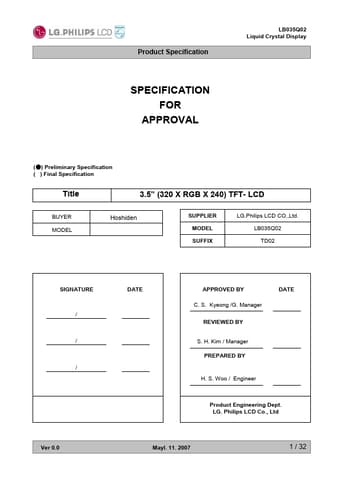

LB035Q02 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ) Preliminary Specification ( ) Final Specification Title BUYER MODEL 3.5” (320 X RGB X 240) TFT- LCD Hoshiden SUPPLIER MODEL SUFFIX www.DataSheet.net/ LG.Philips LCD CO.,Ltd. LB035Q02 TD02 SIGNATURE DATE APPROVED BY C. S. Kyeong /G. Manager DATE / REVIEWED BY / S. H. Kim / Manager PREPARED BY / H. S. Woo / Engineer Product Engineering Dept. LG. Philips LCD Co., Ltd Ver 0.0 Mayl. 11. 2007 1 / .

LB035Q02-TD02 Features

* PARAMETER SPECIFICATION 3.5 inches 76.9[H] x 63.9[V] x 3.15t[D] 70.08[H] x 52.56[V] 320[H] x RGB x 240[V] 0.073 x 0.219 Stripe type TN / Transmissive / Normally White Pseudo-16.7M 6 o’clock RGB Vertical Stripe Digital RGB + SPI Interface 35g[Typ.] 6 LEDs www.DataSheet.net/ REMARK Diagonal [mm] [mm
