LB104S02-TD01 Datasheet - LG

LB104S02-TD01 - Liquid Crystal Display

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE (INPUT TERMINAL) SIGNAL TIMING SPECIFICATIONS TIMING DIAGRAM www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 8 10 11 13 13 14 18 21 DETAIL DESCRIPTION OF PIN FUNCTION RECOMMENDED GAMMA CORRECTION VOLTAGE OPTICAL SFE.

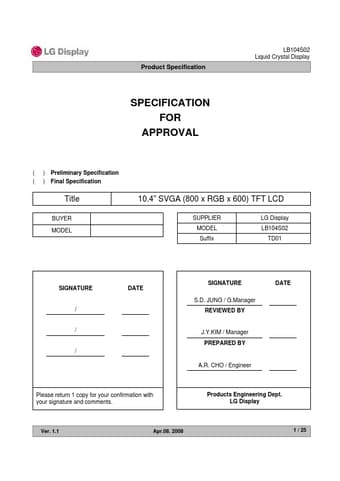

LB104S02 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ( ) ) Preliminary Specification Final Specification Title BUYER MODEL 10.4” SVGA (800 x RGB x 600) TFT LCD SUPPLIER MODEL Suffix www.DataSheet.net/ LG Display LB104S02 TD01 SIGNATURE SIGNATURE DATE S.D. JUNG / G.Manager / REVIEWED BY DATE / J.Y.KIM / Manager PREPARED BY / A.R. CHO / Engineer Please return 1 copy for your confirmation with your signature and comments. Products Engineering Dept. LG Di.

LB104S02-TD01 Features

* Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Weight Display Operating Mode Surface Treatment 10.4 inches diagonal 234.7x178.6x6.8mm 0.088x0.264 mm 800 horiz. by 600 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 250 cd/m2 (Typ.) 420 g(Typ.) Tra

LB104S02-TD01_LG.pdf

LB104S02-TD01 Datasheet Preview — Preview of LB104S02-TD01 PDF

Datasheet Details

Part number:

LB104S02-TD01

Manufacturer:

File Size:

280.11 KB

Description:

Liquid crystal display.
