LC300W01-A3P7 - WXGA TFT LCD

This page provides the datasheet information for the LC300W01-A3P7, a member of the LC300W01 WXGA TFT LCD family.

Datasheet Summary

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC Packing D

Features

  • Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment 29.53 inches(750.062mm) diagonal 697.8(H) x 431.8(V) x 50.9(D) mm(Typ. ) 0.5025mm x 0.1675 x RGB 1280 horiz. By 768 vert. Pixels RGB strip arrangement 16.7M colors 450 cd/m2 Total 107.8 Watt (Typ. ) 6,700 g (typ. ) Transmissive mode, normally Black Hard coating(3H), Anti-glare treatment of the front polarizer, Ver. 2.0 Feb. 04, 2003 4 / 28.

📥 Download Datasheet

Datasheet preview – LC300W01-A3P7

Datasheet Details

Part number LC300W01-A3P7
Manufacturer LG
File Size 603.59 KB
Description WXGA TFT LCD
Datasheet download datasheet LC300W01-A3P7 Datasheet
Additional preview pages of the LC300W01-A3P7 datasheet.

📁 Similar Datasheet

  • LC300W01 - WXGA TFT LCD (LG PHILIPS)
  • LC3000 - High Performance / Low-Cost Analog Line Scan Camera (PerkinElmer Optoelectronics)
  • LC30 - 1500 Watt Low Capacitance Transient Voltage Suppressor (Microsemi)
  • LC3011PGC-022 - High Performance / Low-Cost Analog Line Scan Camera (PerkinElmer Optoelectronics)
  • LC3011PGN-022 - High Performance / Low-Cost Analog Line Scan Camera (PerkinElmer Optoelectronics)
  • LC3012PGC-022 - High Performance / Low-Cost Analog Line Scan Camera (PerkinElmer Optoelectronics)
  • LC3012PGN-022 - High Performance / Low-Cost Analog Line Scan Camera (PerkinElmer Optoelectronics)
  • LC3013PGF-022 - High Performance / Low-Cost Analog Line Scan Camera (PerkinElmer Optoelectronics)
  • LC3013PGN-022 - High Performance / Low-Cost Analog Line Scan Camera (PerkinElmer Optoelectronics)
  • LC3030 - Low Noise PFM Step-up DC/DC Converter (LEADCHIP)
Other Datasheets by LG

Full PDF Text Transcription

Click to expand full text

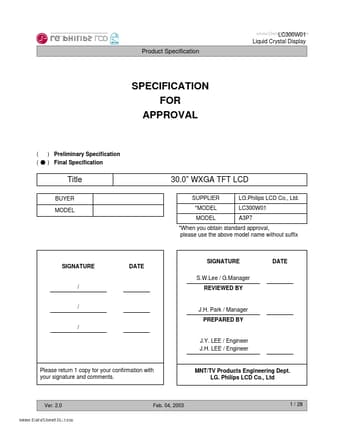

www.DataSheet4U.com LC300W01 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ) Preliminary Specification ( ● ) Final Specification Title BUYER MODEL 30.0” WXGA TFT LCD SUPPLIER *MODEL MODEL LG.Philips LCD Co., Ltd. LC300W01 A3P7 *When you obtain standard approval, please use the above model name without suffix SIGNATURE SIGNATURE DATE S.W.Lee / G.Manager / REVIEWED BY DATE / J.H. Park / Manager PREPARED BY / J.Y. LEE / Engineer J.H. LEE / Engineer Please return 1 copy for your confirmation with your signature and comments. MNT/TV Products Engineering Dept. LG. Philips LCD Co., Ltd Ver. 2.0 Feb. 04, 2003 1 / 28 www.DataSheet4U.
