LC300W01-A3M2 - WXGA TFT LCD

Datasheet Summary

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY

Features

  • Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment 29.53 inches(750.062mm) diagonal 697.8(H) x 431.8(V) x 50.9(D) mm(Typ. ) 0.5025mm x 0.1675 x RGB 1280 horiz. By 768 vert. Pixels RGB strip arrangement 16.7M colors 450 cd/m2 Total 105 Watt (Typ. ) 6,400 g (typ. ) Transmissive mode, normally Black Hard coating(3H), Anti-glare treatment of the front polarizer, Ver. 1.0 Jun. 14, 2002 4 / 28 P.

📥 Download Datasheet

Datasheet preview – LC300W01-A3M2

Datasheet Details

Part number LC300W01-A3M2
Manufacturer LG
File Size 472.21 KB
Description WXGA TFT LCD
Datasheet download datasheet LC300W01-A3M2 Datasheet
Additional preview pages of the LC300W01-A3M2 datasheet.

📁 Similar Datasheet

  • LC300W01 - WXGA TFT LCD (LG PHILIPS)
  • LC3000 - High Performance / Low-Cost Analog Line Scan Camera (PerkinElmer Optoelectronics)
  • LC30 - 1500 Watt Low Capacitance Transient Voltage Suppressor (Microsemi)
  • LC3011PGC-022 - High Performance / Low-Cost Analog Line Scan Camera (PerkinElmer Optoelectronics)
  • LC3011PGN-022 - High Performance / Low-Cost Analog Line Scan Camera (PerkinElmer Optoelectronics)
  • LC3012PGC-022 - High Performance / Low-Cost Analog Line Scan Camera (PerkinElmer Optoelectronics)
  • LC3012PGN-022 - High Performance / Low-Cost Analog Line Scan Camera (PerkinElmer Optoelectronics)
  • LC3013PGF-022 - High Performance / Low-Cost Analog Line Scan Camera (PerkinElmer Optoelectronics)
  • LC3013PGN-022 - High Performance / Low-Cost Analog Line Scan Camera (PerkinElmer Optoelectronics)
  • LC3030 - Low Noise PFM Step-up DC/DC Converter (LEADCHIP)
Other Datasheets by LG

Full PDF Text Transcription

Click to expand full text

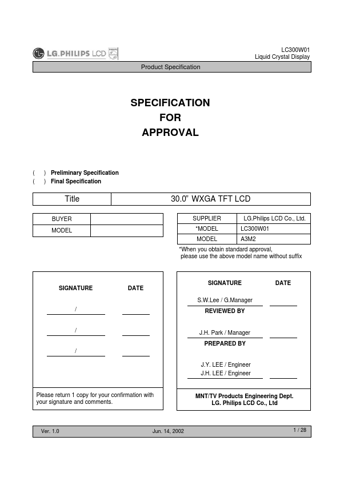

Product Specification SPECIFICATION FOR APPROVAL LC300W01 Liquid Crystal Display ( ) Preliminary Specification ( ) Final Specification Title BUYER MODEL 30.0” WXGA TFT LCD SUPPLIER LG.Philips LCD Co., Ltd. *MODEL LC300W01 MODEL A3M2 *When you obtain standard approval, please use the above model name without suffix SIGNATURE / / / DATE Please return 1 copy for your confirmation with your signature and comments. SIGNATURE S.W.Lee / G.Manager REVIEWED BY J.H. Park / Manager PREPARED BY J.Y. LEE / Engineer J.H. LEE / Engineer DATE MNT/TV Products Engineering Dept. LG. Philips LCD Co., Ltd Ver. 1.0 Jun.
