LC300W01-C5 - LCD

Product Overview

LC300W01-C5 LCD by LG - Datasheet Preview — Datasheet preview – LC300W01-C5

Datasheet Details

Part number	LC300W01-C5
Manufacturer	LG
File Size	599.46 KB
Description	LCD
Datasheet	LC300W01-C5 Datasheet

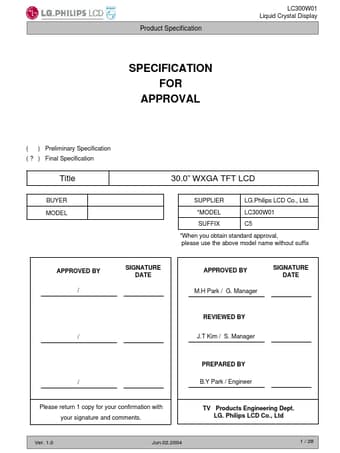

Additional preview pages of the LC300W01-C5 datasheet.

Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC Packing DESIGNATION OF LOT MARK Packing FORM PRECAUTIONS 28 26 ITEM Page 1 2 3 4 5 6 6 8 12 14 15 16 17 21 24 25 Ver.1.0 Jun.02.2004 2 / 28 Datasheet pdf - http://www.DataSheet4U.net/ www.DataSheet.co.

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment 29.53 inches(750.062mm) diagonal 697.8(H) x 431.8(V) x 50.9(D) mm(Typ. ) 0.5025mm x 0.1675 x RGB 1280 horiz. By 768 vert. Pixels RGB strip arrangement 16.7M colors 500 cd/m2 Total 99.64 Watt (Typ. ) 6,100 g (typ. ) Transmissive mode, normally Black Hard coating(3H), Anti-glare treatment of the front polarizer, Ver. 1.0 Jun.02.2004 4 / 28 Da.
