LC420DUE-SFU2 - WUXGA TFT LCD

Product Overview

LC420DUE-SFU2 WUXGA TFT LCD by LG - Datasheet Preview — Datasheet preview – LC420DUE-SFU2

Datasheet Details

Part number	LC420DUE-SFU2
Manufacturer	LG
File Size	879.09 KB
Description	WUXGA TFT LCD
Datasheet	LC420DUE-SFU2 Datasheet

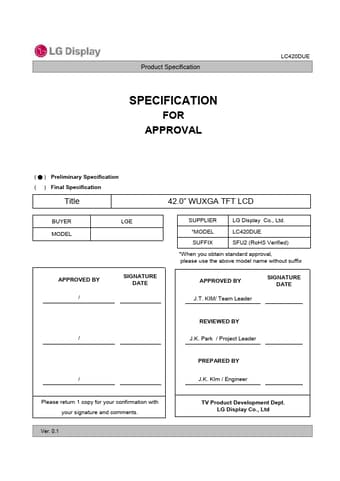

Additional preview pages of the LC420DUE-SFU2 datasheet.

Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC ENVIRONMENT PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING PRECAUTIONS FOR

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment Ver. 0.1 CN201 (7pin) Back light Assembly 41.92 inches(1064.67mm) diagonal 956.4(H) X 555.0(V) X 37.4(B) mm (Typ. ) 0.4833 mm x 0.4833 mm 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 8bit, 16.7Million colors 300 cd/m2 (Center 1point ,Typ. ) Viewing angle free ( R/L 178 (Min. ), U/D 178 (Min. )) Total 54.75W [Logic= 6.3.
