LC420EUA-AEM1 - Display Module

Product Overview

RAKEN

Datasheet Details

Part number	LC420EUA-AEM1
Manufacturer	RAKEN
File Size	1.17 MB
Description	Display Module
Datasheet	LC420EUA-AEM1 Datasheet
Additional preview pages of the LC420EUA-AEM1 datasheet.

Product details

Description

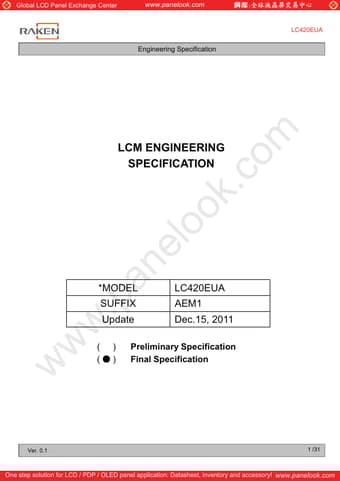

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS Panel Pixel Structure POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY ENVIRONMENT PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE LC420EUA Page 1 2 3 4 5 6 6 9 12 15 16 19 22 25 26 26 26 27 27 27 28 28 28 Ver.

Features

LED Driver Scanning Block 1 Scanning Block 2 Scanning Block 3 Active Screen Size 42.02inches(1067.31mm) diagonal Outline Dimension 960.4(H) Ý 560.4(V)X23.1mm(D) (Typ. ) Pixel Pitch 0.4845 mm x 0.4845 mm Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement Color Depth 8bit, 16.7 Million colors Luminance, White 360 cd/m2 (Center 1point ,Typ. ) Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min. ), U/D 178 (Min. )) Power Consumption Total 54.1W(TBD) (Typ. ) [Logic=8.
