LC420EUD-SDM1 - WUXGA TFT LCD

Product Overview

LC420EUD-SDM1 WUXGA TFT LCD by LG - Datasheet Preview — Datasheet preview – LC420EUD-SDM1

Datasheet Details

Part number	LC420EUD-SDM1
Manufacturer	LG
File Size	942.86 KB
Description	WUXGA TFT LCD
Datasheet	LC420EUD-SDM1 Datasheet

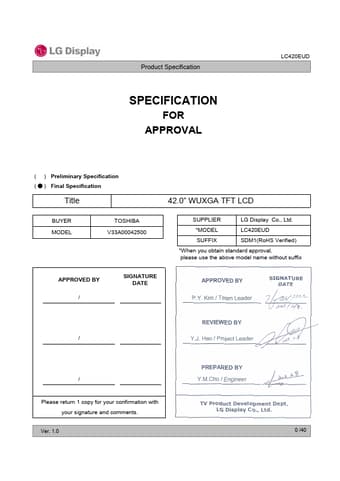

Additional preview pages of the LC420EUD-SDM1 datasheet.

Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS LVDS SIGNAL SPECIFICATIONS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC Environment PACKING INFORMATION OF LCM LABEL PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDLING PRECAUTIONS

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment Ver. 1.0 42.02 inches(1067.31mm) diagonal 968.4(H) × 564.0(V) X 10.8(B)/18.3 mm(D) (Typ. ) 0.4845 mm x 0.4845 mm 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 10bit(D), 1.06Billon colors 450 cd/m2 (Center 1point ,Typ. ) Viewing angle free ( R/L 178 (Min. ), U/D 178 (Min. )) Total 94.1W (TBD) [Logic= 8.6W, LED Driver=85.5W.
