LC550EUF-FEP1 Datasheet - LG

LC550EUF-FEP1 - TFT LCD Module

1 PCID_EN ‘H’ = Enable , ‘L’ or NC = Disable 2 NC No Connection 3 NC No Connection 4 SDA SDA 5 SCL SCL 6 WP WP (Write Protection) 7 LVDS Select ‘H’ =JEIDA , ‘L’ or NC = VESA 8 NC No Connection 9 NC No Connection 10 NC No Connection 11 GND Ground 12 R1AN FIRST LVDS Receiver Signal (

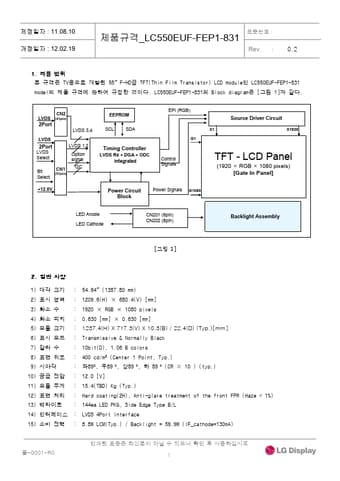

제정일자 : 11.08.10 개정일자 : 12.02.19 제품규격_LC550EUF-FEP1-831 표준번호 : Rev.

: 0.2 1.

적용 범위 본 규격은 TV용으로 개발된 55” F-HD급 TFT(Thin Film Transistor) LCD module인 LC550EUF-FEP1-831 model의 제품 규격에 관하여 규정한 것이다.

LC550EUF-FEP1-831의 Block diagram은 [그림 1]과 같다.

CN2 LVDS (41pin) 2Port LVDS 3,4 LVDS 2Port LVDS Select LVDS 1,2 Option signal Bit CN1 (51pin) Select I2C EEPROM SCL SDA Timing Controller LVDS Rx + DGA + ODC Integrated EPI (RGB) G1 Control Signals Source Driver Circuit S1 S1920 TFT - LCD Panel (19

LC550EUF-FEP1-LG.pdf

Preview of LC550EUF-FEP1 PDF
LC550EUF-FEP1 Datasheet Preview Page 2 LC550EUF-FEP1 Datasheet Preview Page 3

Datasheet Details

Part number:

LC550EUF-FEP1

Manufacturer:

LG

File Size:

597.03 KB

Description:

Tft lcd module.
