LM150X06-D3 Datasheet (LG) - Liquid Crystal Display

LM150X06-D3, Liquid Crystal Display

Absolute Maximum Ratings Electrical Specifications Electrical Characteristics Interface Connections Signal Timing Specifications Signal Timing Waveforms Color Input Data Reference Power Sequence Vcc Power Dip Condition Optical Specifications Item Page 1 2 3 4 5 6 6 8 11 12 13 14 15 16 www.DataShee

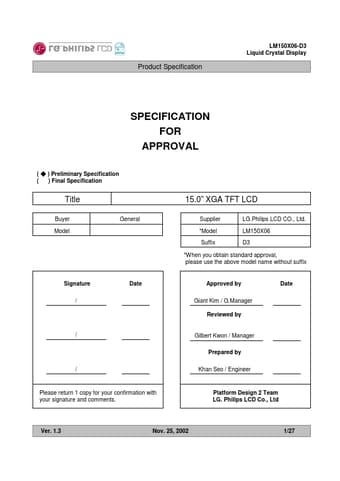

LM150X06-D3 Liquid Crystal Display Product Specification SPECIFICATION FOR APPROVAL ( ) Preliminary Specification ( ) Final Specification Title Buyer Model www.DataSheet.net/ 15.0” XGA TFT LCD General Supplier Model Suffix LG.Philips LCD CO., Ltd.

LM150X06 D3 When you obtain standard approval, please use the above model name without suffix Signature / Date Approved by Giant Kim / G.Manager Reviewed by Date / Gilbert Kwon / Manager Prepared by / Khan Seo / Engineer P

LM150X06-D3 Features

* Active screen size Outline Dimension Pixel Pitch Pixel format Color depth Luminance, white Power Consumption Weight Display operating mode Surface treatments 15.0 inches(304.128 x 228.096) diagonal 331.3(H) × 257.9(V) × 11.0(D) mm (Typ.) 0.297 mm x 0.297mm 1024 Horiz. by 768 Vert. Pixels RGB stripes
