LM1500 Half Size Voltage Controlled Crystal Oscillator

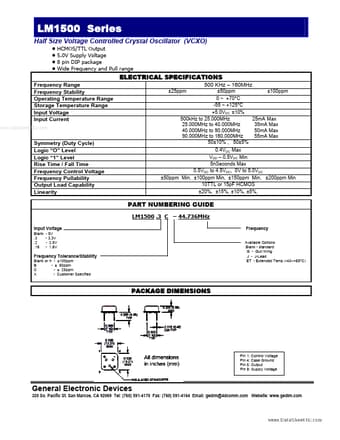

LM1500 Series Half Size Voltage Controlled Crystal Oscillator (VCXO) HCMOS/TTL Output 5.0V Supply Voltage 8 pin DIP package Wide Frequency and Pull range ELECTRICAL SPECIFICATIONS Frequency Range Frequency Stability Operating Temperature Range Storage Temperature Range Input Voltage Input Current www.DataSheet4U.com 500 KHz 160MHz ±25ppm ±50ppm ±100ppm 0 ~ +70°C -55 ~ +125°C +5.0VDC ±10% 500kHz to 25.000MHz 25mA Max 25.000MHz to 40.000MHz 35mA .

LM1500 Datasheet (203.26 KB)

LM1500 Datasheet Preview — Preview of LM1500 PDF

Datasheet Details

Part number:

LM1500

Manufacturer:

ETC

File Size:

203.26 KB

Description:

Half size voltage controlled crystal oscillator.
