LM1501AG - Step-Down Switching Regulator

Datasheet Summary

Description

The LM1501AG series of regulators are monolithic integrated circuits that provide all the active functions for a step-down switching regulator, capable of driving a 5A load with excellent line and load regulation.

Features

  • 3.3V, 5V, 12V, and adjustable output versions.
  • Adjustable version output voltage range.
  • Guaranteed 5A output load current.
  • Input voltage range up to 40V.
  • 150KHz fixed frequency internal oscillator.
  • Excellent line and load regulation.
  • Thermal shutdown and current limit protection TO-263-5L PKG TO-220-5L PKG.

📥 Download Datasheet

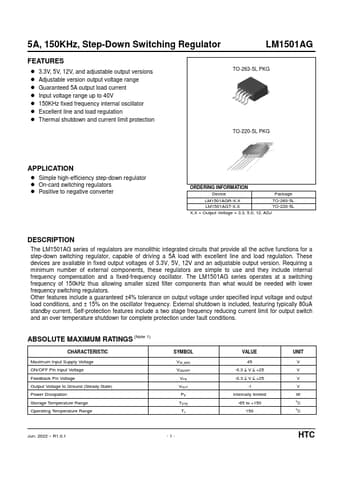

Datasheet preview – LM1501AG

Datasheet Details

Part number LM1501AG
Manufacturer HTC
File Size 342.72 KB
Description Step-Down Switching Regulator
Datasheet download datasheet LM1501AG Datasheet
Additional preview pages of the LM1501AG datasheet.

📁 Similar Datasheet

  • LM1501-7R - 50 Watt DC-DC Converters (Power-One)
  • LM150 - ADJUSTABLE VOLTAGE REGULATORS THREE-TERMINAL 3 A (STMicroelectronics)
  • LM150 - 3 AMP POSITIVE ADJUSTABLE VOLTAGE REGULATOR (Seme LAB)
  • LM150 - 3-Amp Adjustable Regulator (Texas Instruments)
  • LM150 - 3 Amp Positive Adjustable Regulator (Linear Technology)
  • LM150 - 3-Amp Adjustable Regulators (National Semiconductor)
  • LM1500 - Half Size Voltage Controlled Crystal Oscillator (ETC)
  • LM150A - 3-Amp Adjustable Regulators (National Semiconductor)
  • LM150K - ADJUSTABLE VOLTAGE REGULATORS THREE-TERMINAL 3 A (STMicroelectronics)
  • LM150QML - 3-Amp Adjustable Regulators (Texas Instruments)
Other Datasheets by HTC
  • LM1501A - Step-down Switching Regulator
  • LM1501BG - Step-Down Switching Regulator
  • LM1084 - 5.0A LDO Voltage Regulator
  • LM1085 - 3A L.D.O. VOLTAGE REGULATOR
  • LM1086 - 1.5A L.D.O. VOLTAGE REGULATOR
  • LM1108 - 300mA CMOS L.D.O. Regulator
  • LM1108F - C-MOS L.D.O. Regulator
  • LM1108SF - C-MOS L.D.O. Regulator

Full PDF Text Transcription

Click to expand full text
5A, 150KHz, Step-Down Switching Regulator LM1501AG FEATURES  3.3V, 5V, 12V, and adjustable output versions  Adjustable version output voltage range  Guaranteed 5A output load current  Input voltage range up to 40V  150KHz fixed frequency internal oscillator  Excellent line and load regulation  Thermal shutdown and current limit protection TO-263-5L PKG TO-220-5L PKG APPLICATION  Simple high-efficiency step-down regulator  On-card switching regulators  Positive to negative converter ORDERING INFORMATION Device Package LM1501AGR-X.X LM1501AGT-X.X TO-263-5L TO-220-5L X.X = Output Voltage = 3.3, 5.
