Description

LM150 LM350A LM350 3-Amp Adjustable Regulators January 1995 LM150 LM350A LM350 3-Amp Adjustable Regulators General .
The LM150 series of adjustable 3-terminal positive voltage regulators is capable of supplying in excess of 3A over a 1 2V to 33V output range They are.

📥 Download Datasheet

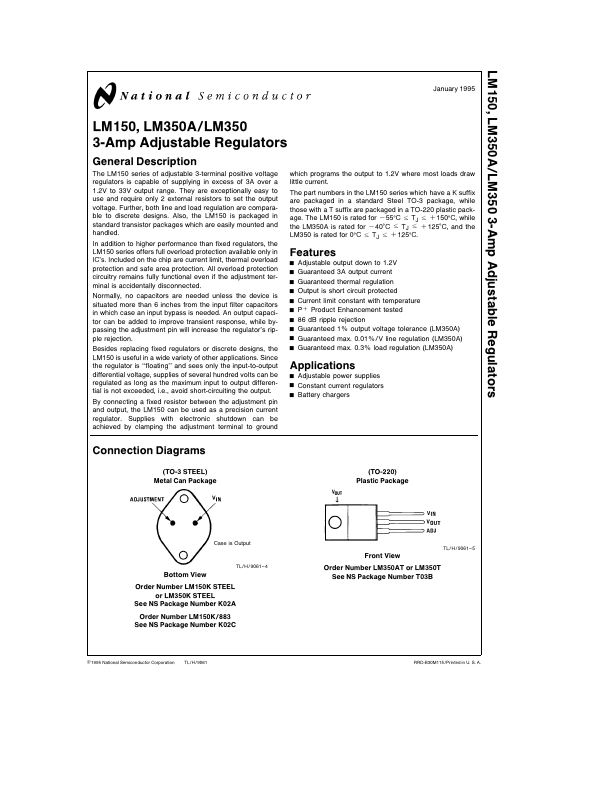

LM150A Datasheet Preview — This datasheet PDF includes multiple part numbers: LM150A, LM150. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LM150A, LM150
Manufacturer: National Semiconductor
File Size: 226.23 KB
Datasheet: LM150-NationalSemiconductor.pdf
Description: 3-Amp Adjustable Regulators
Note: This datasheet PDF includes multiple part numbers: LM150A, LM150.
Please refer to the document for exact specifications by model.

Features

* Y Adjustable output down to 1 2V Y Guaranteed 3A output current Y Guaranteed thermal regulation Y Output is short circuit protected Y Current limit constant with temperature Y Pa Product Enhancement tested Y 86 dB ripple rejection Y Guaranteed 1% output voltage tolerance (LM350A) Y Guaranteed max 0

Applications

* Since the regulator is ‘‘floating’’ and sees only the input-to-output differential voltage supplies of several hundred volts can be regulated as long as the maximum input to output differential is not exceeded i e avoid short-circuiting the output By connecting a fixed resistor between the adjustmen
