LM1558 Datasheet - National Semiconductor

Dual Operational Amplifier

LM1558 Features

* n No frequency compensation required n Short-circuit protection n Wide common-mode and differential voltage ranges n Low-power consumption n 8-lead can and 8-lead mini DIP n No latch up when input common mode range is exceeded Connection Diagrams Metal Can Package Dual-In-Line Package 00788602 To

LM1558 General Description

The LM1458 and the LM1558 are general purpose dual operational amplifiers. The two amplifiers share a common bias network and power supply leads. Otherwise, their operation is completely independent. The LM1458 is identical to the LM1558 except that the LM1458 has its specifications guaranteed over .

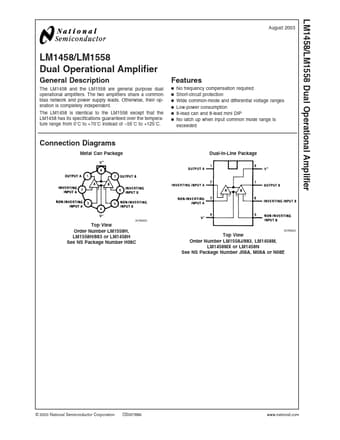

LM1558 Datasheet (116.94 KB)

LM1558 Datasheet Preview — Preview of LM1558 PDF

Datasheet Details

Part number:

LM1558

Manufacturer:

National Semiconductor

File Size:

116.94 KB

Description:

Dual operational amplifier.
