LM1501A - Step-down Switching Regulator

Datasheet Summary

Description

Ordering Information Device(Marking) PKG LM1501AR-X.X TO-263 5L LM1501AT-X.X TO-220 5L X.X = Output Voltage = 3.3, 5.0, 12, ADJ The LM1501A series of regulators are monolithic integrated circuits that provide all the active functions for a step-down switching regulator, capable of driving a

Features

3.3V, 5V, 12V, and adjustable output versions.
Adjustable version output voltage range, 1.23V to 37V ± 3% max over line and load conditions.
Guaranteed 5A output load current.
Input voltage range up to 40V.
Requires only 4 external components.
150kHz ±15% fixed frequency internal oscillator.
Excellent line and Load regulation specifications.
Low power standby mode, IQ typically 80uA.
Thermal shutdown and current limit protection TO-263 PKG TO-220 PK.

Datasheet Details

Part number	LM1501A
Manufacturer	HTC
File Size	291.53 KB
Description	Step-down Switching Regulator
Datasheet	LM1501A Datasheet

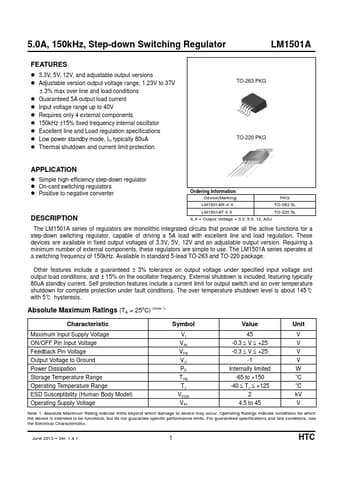

Additional preview pages of the LM1501A datasheet.

📁 Similar Datasheet

LM1501-7R - 50 Watt DC-DC Converters (Power-One)

LM150 - ADJUSTABLE VOLTAGE REGULATORS THREE-TERMINAL 3 A (STMicroelectronics)

LM150 - 3 AMP POSITIVE ADJUSTABLE VOLTAGE REGULATOR (Seme LAB)

LM150 - 3-Amp Adjustable Regulator (Texas Instruments)

LM150 - 3 Amp Positive Adjustable Regulator (Linear Technology)

LM150 - 3-Amp Adjustable Regulators (National Semiconductor)

LM1500 - Half Size Voltage Controlled Crystal Oscillator (ETC)

LM150A - 3-Amp Adjustable Regulators (National Semiconductor)

LM150K - ADJUSTABLE VOLTAGE REGULATORS THREE-TERMINAL 3 A (STMicroelectronics)

LM150QML - 3-Amp Adjustable Regulators (Texas Instruments)

Full PDF Text Transcription

Click to expand full text

5.0A, 150kHz, Step-down Switching Regulator LM1501A FEATURES  3.3V, 5V, 12V, and adjustable output versions  Adjustable version output voltage range, 1.23V to 37V ± 3% max over line and load conditions  Guaranteed 5A output load current  Input voltage range up to 40V  Requires only 4 external components  150kHz ±15% fixed frequency internal oscillator  Excellent line and Load regulation specifications  Low power standby mode, IQ typically 80uA  Thermal shutdown and current limit protection TO-263 PKG TO-220 PKG APPLICATION  Simple high-efficiency step-down regulator  On-card switching regulators  Positive to negative converter DESCRIPTION Ordering Information Device(Marking) PKG LM1501AR-X.X TO-263 5L LM1501AT-X.X TO-220 5L X.X = Output Voltage = 3.3, 5.
