LM215WF4-TLA1 - LCD

The LM215WF4-TLA1 by LG is a LCD. Below is the official datasheet preview.

LM215WF4-TLA1 LCD by LG - Datasheet Preview — Official preview page of the **LM215WF4-TLA1** LCD datasheet (LG).

Datasheet Details

Part number	LM215WF4-TLA1
Manufacturer	LG
File Size	2.05 MB
Description	LCD
Datasheet	LM215WF4-TLA1_LG.pdf

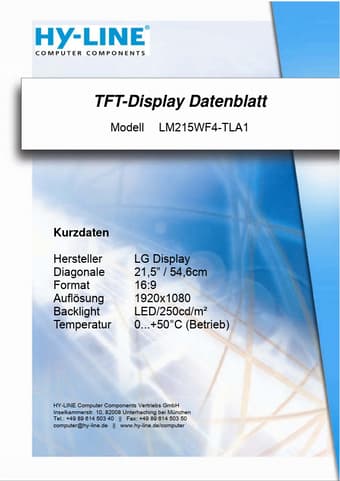

Additional preview pages of the LM215WF4-TLA1 datasheet.

LM215WF4-TLA1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR DATA REFERNECE POWER SEQUENCE VLCD POWER DIP CONDITION OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS ITEM Page 1 2 3 4 5 6 6 9 15 16 17 18 19 20 24 27 28 28 28 29 29 29 30 Ver.1.0 Dec.14. 2009 2 / 31 HY-LINE Computer Component

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle(CR>10) Power Consumption Weight Display Operating Mode Surface Treatment Color Gamut Ver. 1.0 Figure 1. Block diagram 21.53 inches(546.86mm) diagonal 495.6(H) x 292.2(V) x 11.5(D) mm (Typ. ) 0.248 mm x 0.248mm 1920 horiz. By 1080 vert. Pixels RGB stripes arrangement 16.7M colors (6bit + A FRC) 250 cd/m2 ( Center 1 points) View Angle Free (R/L 170(Typ. ), U/D 160(Typ. )) Total 16.2W (Typ. ), (3.5.
