LM220W1-B2MN Datasheet - LG

LM220W1-B2MN Liquid Crystal Display

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERENCES POWER SEQUENCES OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC DESIG.

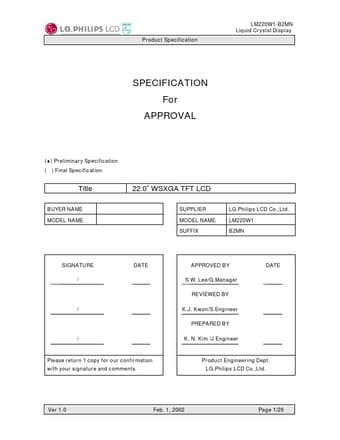

LM220W1-B2MN Liquid Crystal Display Product Specification SPECIFICATION For APPROVAL ( ) Preliminary Specification ( ) Final Specification Title BUYER NAME MODEL NAME 22.0” WSXGA TFT LCD SUPPLIER MODEL NAME www.DataSheet.net/ LG.Philips LCD Co.,Ltd. LM220W1 B2MN SUFFIX SIGNATURE / DATE APPROVED BY S.W. Lee/G.Manager REVIEWED BY DATE / K.J. Kwon/S.Engineer PREPARED BY / K. N. Kim /J Engineer Please return 1 copy for our confirmation with your signature and comments. Produc.

LM220W1-B2MN Features

* of the model LM220W1 LCD; Active display area 22.0 inches(56cm) diagonal Outsize dimensions 542.0w

* 375.0h

* 35.3t(typ)mm(Without Inverter) Pixel pitch 0.294 mm × 0.294 mm Pixel format 1600 horiz. By 1024 vert. pixels RGB vertical stripe arrangement Color depth 8-bit, 16,777,216 colors Disp
