LM2202, 230 MHz Video Amplifier System

LM2202 230 MHz Video Amplifier System April 1999 LM2202 230 MHz Video Amplifier System General .
The LM2202 is a very high frequency video amplifier system intended for use in high resolution monochrome or RGB color monitor applications.

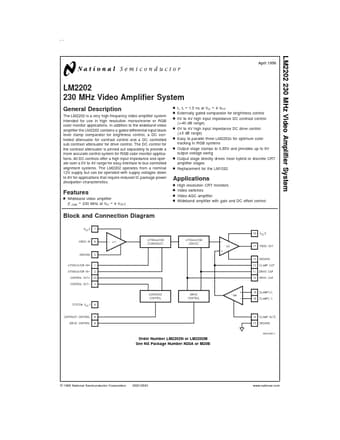

datasheet Preview Page 1 from Datasheet4u.com

LM2202_NationalSemiconductor.pdf

LM2202 Datasheet Preview — Preview of LM2202 PDF

Datasheet Details

Part number:

LM2202

Manufacturer:

National Semiconductor

File Size:

416.80 KB

Description:

230 MHz Video Amplifier System

Features

* n Wideband video amplifier (f
* 3dB = 230 MHz at VO = 4 VPP) Block and Connection Diagram DS012591-1 Order Number LM2202N or LM2202M See NS Package Number N20A or M20B © 1999 National Semiconductor Corporation DS012591 www. national. com Absolute Maximum Ratings (Note 1) If Military/Aeros

Applications

* In addition to the wideband video amplifier the LM2202 contains a gated differential input black level clamp comparator for brightness control, a DC controlled attenuator for contrast control and a DC controlled sub contrast attenuator for drive control. The DC control for the contrast attenuator i
