LM238WF1-SLA1 Datasheet - LG

LM238WF1-SLA1 Full HD TFT LCD

2 ABSOLUTE MAXIMUM RATINGS 3 ELECTRICAL SPECIFICATIONS 3-1 ELECTRICAL CHARACTREISTICS 3-2 INTERFACE CONNECTIONS 3-3 SIGNAL TIMING SPECIFICATIONS 3-4 SIGNAL TIMING WAVEFORMS 3-5 COLOR INPUT DATA REFERNECE 3-6 POWER SEQUENCE 3-7 VLCD Power Dip Condition 4 OPTICAL SPECIFICATIONS 5 MECHANICAL CHARACTERI.

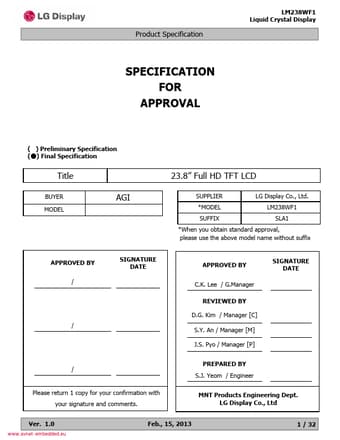

Global LCD Panel Exchange Center www.panelook.com Product Specification SPECIFICATION FOR APPROVAL LM238WF1 Liquid Crystal Display (̻ ) Preliminary Specification ( ) Final Specification Title BUYER MODEL General 23.8” Full HD TFT LCD SUPPLIER LG Display Co., Ltd. MODEL LM238WF1 SUFFIX SLA1 When you obtain standard approval, please use the above model name without suffix APPROVED BY / SIGNATURE DATE / APPROVED BY C.K. Lee / G.Manager REVIEWED BY D.G. Kim / Manager [C] .

LM238WF1-SLA1 Features

* Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle(CR>10) Power Consumption Weight Display Operating Mode Panel type Surface Treatment Ver. 0.1 [ Figure 1 ] Block diagram 23.8 inches diagonal 543.0(H) x 317.4(V) x 11.2(D) mm (Typ.) 0.2745 mm x

LM238WF1-SLA1 Datasheet (17.63 MB)
