LM238K Datasheet, Regulator, STMicroelectronics

LM238K Features

  • Regulator
  • Guaranteed 7 A peak output current
  • Guaranteed 5 A output current )
  • Adjustable output down to 1.2 V t(s
  • Line regulation typically 0.005 %/V uc <

PDF File Details

Part number:

LM238K

Manufacturer:

STMicroelectronics ↗

File Size:

1.53MB

Download:

📄 Datasheet

Description:

Three-terminal 5a adjustable voltage regulator. bs The LM138, LM238, LM338 are adjustable 3O terminal positive voltage regulators capable of - supplying in excess of 5 A over a 1.2

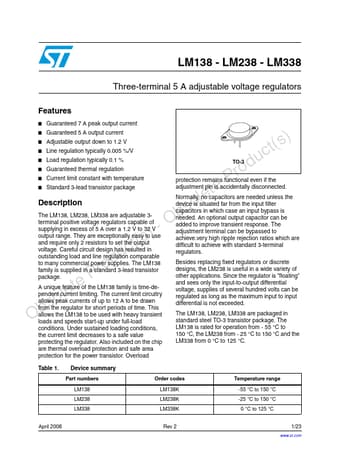

Datasheet Preview: LM238K 📥 Download PDF (1.53MB)
Page 2 of LM238K Page 3 of LM238K

LM238K Application

  • Applications Since the regulator is "floating" and sees only the input-to-output differential voltage, supplies of several hundred volts can be reg
