LP141WX1-TL03 - Liquid Crystal Display

The LP141WX1-TL03 by LG is a Liquid Crystal Display. Below is the official datasheet preview.

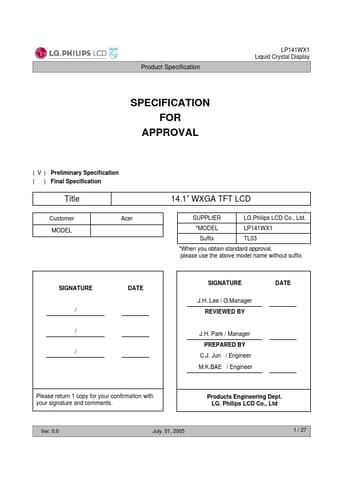

LP141WX1-TL03 Liquid Crystal Display by LG - Datasheet Preview — Official preview page of the **LP141WX1-TL03** Liquid Crystal Display datasheet (LG).

Datasheet Details

Part number	LP141WX1-TL03
Manufacturer	LG
File Size	301.13 KB
Description	Liquid Crystal Display
Datasheet	LP141WX1-TL03_LG.pdf
Additional preview pages of the LP141WX1-TL03 datasheet.

LP141WX1-TL03 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 7 9 9 10 11 12 16 20 COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS APPENDIX.Enhanced Extended Display Identification Data 21 21 22 23 24 26 28 Ver.0

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment RoHS Comply 14.1 inches diagonal 319.5 (H, typ) 0.2373 mm 205.5(V, typ) 0.2373 mm 5.5(D, max) [mm] 1280 horiz. By 800 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 200 cd/m2(Typ.5 point) Total 5.2 Watt(Typ. ) @ LCM circuit 1.1Watt(Typ. ), B/L input 4.1Watt(Typ. ) 425 g (Max. ), 415g(Typ. ) Transmissive mode, normally white Anti-glare.
