LP141WX1-TL2 - WXGA TFT LCD

The LP141WX1-TL2 by LG is a WXGA TFT LCD. Below is the official datasheet preview.

LP141WX1-TL2 WXGA TFT LCD by LG - Datasheet Preview — Official preview page of the **LP141WX1-TL2** WXGA TFT LCD datasheet (LG).

Datasheet Details

Part number	LP141WX1-TL2
Manufacturer	LG
File Size	377.55 KB
Description	WXGA TFT LCD
Datasheet	LP141WX1-TL2-LG.pdf

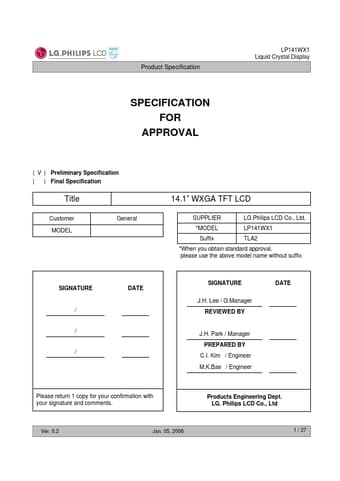

Additional preview pages of the LP141WX1-TL2 datasheet.

LP141WX1-TL2 Product details

Description

2 ABSOLUTE MAXIMUM RATINGS 3 ELECTRICAL SPECIFICATIONS 3-1 ELECTRICAL CHARACTREISTICS 3-2 INTERFACE CONNECTIONS 3-3 SIGNAL TIMING SPECIFICATIONS 3-4 SIGNAL TIMING WAVEFORMS 3-5 COLOR INPUT DATA REFERNECE 3-6 POWER SEQUENCE 4 OPTICAL SFECIFICATIONS 5 MECHANICAL CHARACTERISTICS 6 RELIABLITY 7 INTERNATIONAL STANDARDS 7-1 SAFETY 7-2 EMC 8 PACKING 8-1 DESIGNATION OF LOT MARK 8-2 PACKING FORM 9 PRECAUTIONS A APPENDIX.Enhanced Extended Display Identification Data Ver.0.2 Jan.05, 2006

Features

:Power Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment 14.1 inches diagonal 319.5 (H, typ) × 205.5(V, typ) × 5.3(D, max) [mm] 0.2373 mm × 0.2373 mm 1280 horiz. By 800 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 200 cd/m2(Typ.5 point) Total 5.38 Watt(Typ. ) @ LCM circuit 1.28Watt(Typ. ), B/L input 4.1Watt(Typ. ) 400 g (Max. ), 390g(Typ. ) Transmissive mode, normally white Glare.
