LP141X13-B1 - Liquid Crystal Display

Product Overview

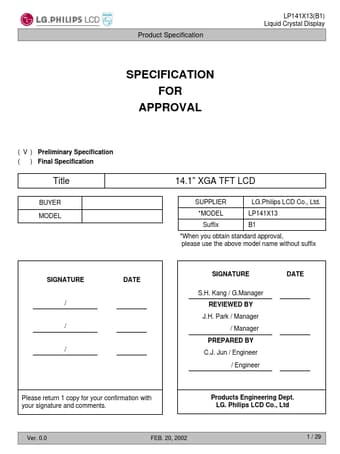

LP141X13-B1 Liquid Crystal Display by LG - Datasheet Preview — Datasheet preview – LP141X13-B1

Datasheet Details

Part number	LP141X13-B1
Manufacturer	LG
File Size	456.92 KB
Description	Liquid Crystal Display
Datasheet	LP141X13-B1 Datasheet
Additional preview pages of the LP141X13-B1 datasheet.

Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS www.DataSheet.net/ ITEM Page 1 2 3 4 5 6 7 9 9 10 11 12 16 20 COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABLITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS APPENDIX.Enhanced Extended Display Identification Data APPENDIX.Inspection Criteria

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Power Consumption Weight Display Operating Mode Surface Treatment 14.1 inches(35.814cm) diagonal 299(H) × 226.5(V) × 5.5(D) mm (Typ. ) 0.279 mm × 0.279 mm 1024 horiz. By 768 vert. Pixels RGB strip arrangement 6-bit, 262,144 colors 150 cd/m2(Min. ), 5p average Total 5.0 Watt(Typ. ) 435 g (Max. ) w/o inverter and bracket, 450g(Max. ) w/ inverter and bracket Transmissive mode, normally white Hard coating(3H) Anti-.
