LP141X13-C2 - Liquid Crystal Display

Product Overview

LP141X13-C2 Liquid Crystal Display by LG - Datasheet Preview — Datasheet preview – LP141X13-C2

Datasheet Details

Part number	LP141X13-C2
Manufacturer	LG
File Size	595.64 KB
Description	Liquid Crystal Display
Datasheet	LP141X13-C2 Datasheet

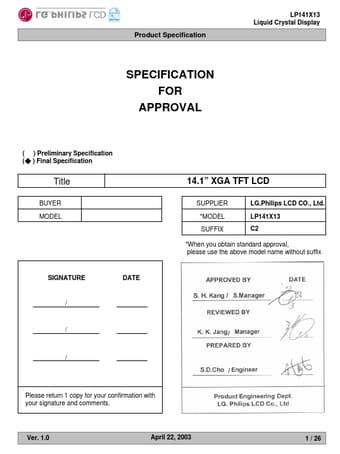

Additional preview pages of the LP141X13-C2 datasheet.

Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PAKING FORM PRECAUTIONS APPENDIX.Enhanced Extended Display Identification Data www.DataSheet.net/ Page 1 2 3 4 5 6 6 8 9 9 10 11 12 16 20 21 21 21 22 22 22 23 25 Ver.1.0 A

Features

Active screen size Outline Dimension Pixel Pitch Pixel format Color depth Luminance, white Power Consumption Weight Display operating mode Surface treatments 14.1 inch(35.7cm) diagonal 299.0(H) x 226.5(V) x 5.2(D) mm 0.279(H) x 0.279(V) mm 1024 horiz. By 768 vert. Pixels RGB stripes arrangement 6-bit, 262,144 colors 200 cd/m2(Typ. ) Center 1Point 4.56W(Typ) 435g(Typ. ) Transmissive mode, normally white Anti-glare & hard coating 3H, Anti-Reflection Ver. 1.0 April 22, 2003 4 / 26 Datasheet pdf -.
