2SA1036K - NPN Transistor

2SA1036K Description

1.BASE 2.EMITTER 3.COLLECTOR 2SA1036K SOT-23-3L Transistor(PNP) SOT-23-3L 2.92 0.35 1.17 .

2SA1036K Features

* — Large IC. IC= -500 mA — Low VCE(sat). Ideal for low-voltage operation. MARKING : HP, HQ, HR 2.80 1.60 0.15 1.90 MAXIMUM RATINGS (TA=25℃ unless otherwise noted) Dimensions in inches and (millimeters) Symbol VCBO VCEO VEBO IC PC TJ Tstg Parameter Collector-Base Voltage Collector-Emitter Voltag

📥 Download Datasheet

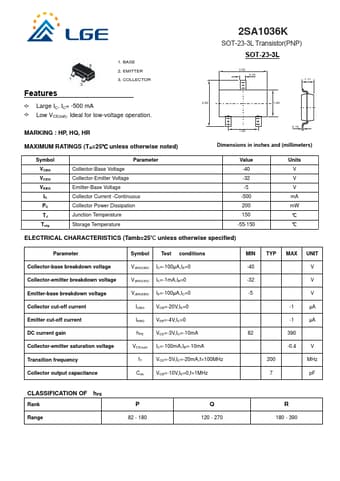

Preview of 2SA1036K PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SA1036K
Manufacturer
LGE
File Size
222.69 KB
Datasheet
2SA1036K-LGE.pdf
Description
NPN Transistor
