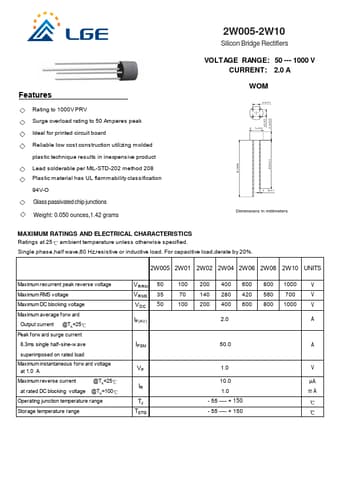

Part number:
2W10
Manufacturer:
LGE
File Size:
118.92 KB
Description:
Silicon bridge rectifiers.
* Rating to 1000V PRV Surge overload rating to 50 Amperes peak Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique results in inexpensive product Lead solderable per MIL-STD-202 method 208 Plastic material has UL flammability classification 94V-O Glass pas
2W10
LGE
118.92 KB
Silicon bridge rectifiers.
📁 Related Datasheet
2W10 - 2 Amp Single Phase Bridge Rectifier 50 to 1000 Volts
(Micro Commercial Components)
MCC
Features
• • • •
omponents 21201 Itasca Street Chatsworth # $
% #
2W005 THRU 2.
2W10 - 2.0A WOM BRIDGE RECTIFIERS
(Leshan Radio Company)
.
2W10 - SINGLE PHASE 2.0 AMP BRIDGE RECTIFIERS
(Formosa MS)
2W005
SINGLE PHASE 2.0 AMP BRIDGE RECTIFIERS
THRU
2W10
VOLTAGE RANGE
50 to 1000 Volts
CURRENT
2.0 Amperes
WOL
.358 (9.1) MAX. .290(7.4) .270(6.9)
.
2W10 - SINGLE PHASE 2.0 AMP SILICON BRIDGE RECTIFIERS
(Jinan Gude Electronic Device)
.
2W10 - SILICON BRIDGE RECTIFIERS
(EIC discrete Semiconductors)
2W005 - 2W10
PRV : 50 - 1000 Volts Io : 2.0 Amperes
FEATURES :
* * * * * * High case dielectric strength High surge current capability High reliabilit.
2W10 - Silicon Bridge Rectifiers
(GME)
Production specification
Silicon Bridge Rectifiers
2W005--2W10
FEATURES
z Rating to 1000V PRV z Surge overload rating to 50 Amperes peak
z Ideal fo.
2W10 - SINGLE PHASE SILICON BRIDGE RECTIFIER
(KD)
2W005 THRU 2W10
SINGLE PHASE SILICON BRIDGE RECTIFIER
Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere
FEATURES
● Ideal for printed ci.
2W10 - 2.0A Single-Phase Silicon Bridge Rectifier
(SEP ELECTRONIC)
SEP ELECTRONIC CORP.
2W005 thru 2W10
2.0 A Single-Phase Silicon Bridge Rectifier
Rectifier Reverse Voltage 50 to 1000V
WOB
8.85+0.5
Features
5.3.
