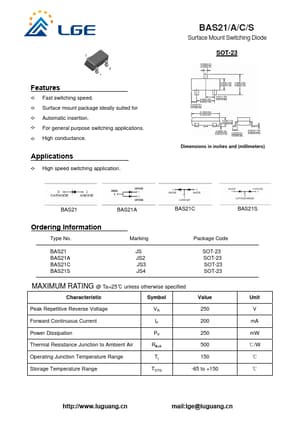

datasheet Preview Page 1 from Datasheet4u.com

BAS21, BAS21A Surface Mount Switching Diode

BAS21/A/C/S Surface Mount Switching Diode SOT-23 .

BAS21A-LGE.pdf

BAS21 Datasheet Preview — This datasheet PDF includes multiple part numbers: BAS21, BAS21A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BAS21, BAS21A

Manufacturer:

LGE

File Size:

198.14 KB

Description:

Surface Mount Switching Diode

Note:

This datasheet PDF includes multiple part numbers: BAS21, BAS21A.
Please refer to the document for exact specifications by model.

Applications

* High conductance. Dimensions in inches and (millimeters) Applications High speed switching application. BAS21 BAS21A BAS21C BAS21S Ordering Information Type No. BAS21 BAS21A BAS21C BAS21S Marking JS JS2 JS3 JS4 Package Code SOT-23 SOT-23 SOT-23 SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherw
