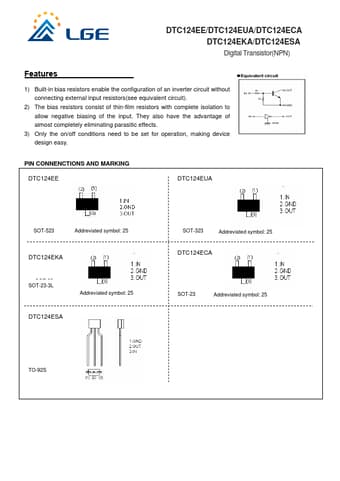

DTC124EKA, DTC124EE - NPN Digital Transistor

Datasheet Details

Part number	DTC124EKA, DTC124EE
Manufacturer	LGE
File Size	139.67 KB
Description	NPN Digital Transistor
Datasheet	DTC124EE-LGE.pdf
Note	This datasheet PDF includes multiple part numbers: DTC124EKA, DTC124EE. Please refer to the document for exact specifications by model.

1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit). 2) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on/off conditions need to be set for operation, making device design easy. PIN.
